Home > Product > Multi Robot Trainer

Education Total Solution!

Multi Robot Trainer

Item :	Robotics
Model :	IEG 2010
FOB Price :	Depend on Quantity
M.O.Q :	Negotiable
Supply Ability :	To be advised
Payment Terms :	T/T or L/C

Product Details

• Best experimental item of Microprocessor Applications
• 3 Functions - Micro Mouse, Line Tracer, RC Soccer Robot
• Support 3 MCUs - 89C51AC2, ATmega32, PIC18F452
• Program update is very easy through ISP(In System Programming) f
  unction under the identical download cable and ISP downloader Software
• Low Battery Warning, RF Data Communication, Programming with C-Language
• Specially designed Robot Base Plate provides safe robot practical practice
  of stepping motor control, Ir sensor detection, character LCD display,
  digital I/O control, buzzer control and RF control on the experimental table

Features

 1. IEG 2010-1 :  8051 (T89C51AC2)
                  • CPU : T89C51AC2
                  • System Clock : 20MHz
                  • Flash Memory : 32kbyte
                  • ISP Port : 3 Pin

 2. IEG 2000-02 : AVR (ATmega32)
                  • CPU : ATmega32
                  • System Clock : 16MHz
                  • Flash Memory : 32kbyte
                  • ISP Port : 3 Pin
                  • J-Tag Port : 6 Pin

 3. IEG 2000-03 : PIC (18F452)
                  • CPU : 18F452
                  • System Clock : 10MHz
                  • Flash Memory : 32kbyte
                  • ISP Port : 3 Pin

 4. IEG 2011~2013 : Multi-Micro Mouse/Line Trace/Line Trace, Mouse
                    • High speed control process using 3 Kinds of MCU
                      (8051, AVR, PIC)
                    • MCU: 89C51AC2 (ATMEL) / ATmega32 (ATMEL) /
                           PIC18F452 (Microchip)
                    • A/D Converter: 8 channel (10bit)
                    • Line Tracer Development Kit Supplied
                      (Software Library, Source Code)
                    • Micro- Mouse Development Kit Supplied
                      (Software Library, Source Code)
                    • Stepping Motor: 2EA

 5. IEG 2014 : Multi-RC Robot
               • High-speed RF Control Method using 3 Kinds of MCU
                  (8051, AVR, PIC)
               • MCU: 89C51AC2 (ATMEL) / ATmega32 (ATMEL) /
                      PIC18F452 (Microchip)
               • RC Robot Development Kit Supplied
                 (Software Library, Source Code)
               • RF Module: RC Transmitter and Receiver 2ch
                            (27MHz or 75MHz)
               • Stepping Motor: 2EA

 6. IEG 2010-11 : Table
                  • Material: winceyette covered PB
                  • Size: 2200(W) x 1850(D) x 710(H) mm

     IEG 2010-4 : Counter
                  •  F.N.D Display: 5EA, size 90(H) x 63(W) mm
                  •  Control Switch: Start, Stop, Reset
                  •  Fiber optic sensor Gate: 1 for detect Start,
                     1 for detect stop

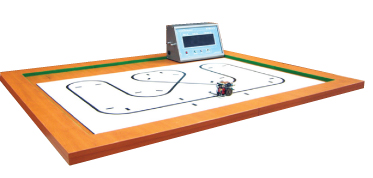

     IEG 2010-7 : Lice Tracer Track (A-type)
                  • Material: Foamex, double sided white and black color
                  • Line Color: Flat black
                  • Size: 1800(W) x 1200(D) x 50(H) m

 7. IEG 2010-8 : Line Tracer Track (B type)
                 • Material: base MDF, Plastic Poll and Wall
                 • Line Color: Flat white
                 • Line type: grid line track in 5 x 5 Maze
                 • Size: 1080(W) x 1080(D) mm

 8. IEG 2010-12 : Table
                  • Material: winceyette covered PB
                  • Size: 1750(W) x 1520(D) x 710(H) mm

     IEG 2010-5 : Counter
                  • F.N.D Display: 5EA, size 90(H) x 62(W) mm
                  • Control Switch: Start, Stop, Reset
                  • Ir sensor: Installed inside of the poll at start
                    position of Maze, sensitivity adjustment volume

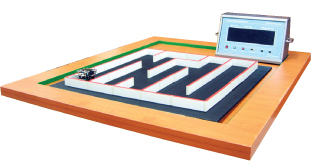

     IEG 2010-9 : Micro-Mouse Maze Ground
                  • Composition: Base, Poll 39 EA, Wall 39EA
                  • Material: Base MDF, Poll & Wall ABS
                  • Line Color: Flat black
                   • Size: 1800(W) x 1200(D) x 50(H) mm

 9. IEG 2010-13 : Table
                  • Material: winceyette covered PB
                  • Line Color: Flat black
                  • Size: 2200(W) x 1850(D) x 710(H) mm

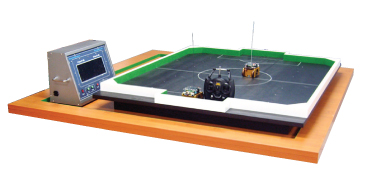

    IEG 2010-10 : Robot Soccer Ground
                  • Base: Flat black paint coated Wood
                  • Wall: Flat white paint coated and
                          winceyette covered Wood
                  • Size: 1750(W) x 1350(D) mm
