Electric Motorized Shut-Off Ball Valve
1. Power supply : DC12V/DC24V, AC220/60Hz, AC220/60Hz
2. Max.Output Torque : 40kgf.cm ~ 350kgf.cm (depending on model)
3. Power consumption : Approx. 0.6W ~ 24W (depending on model)
4. Operating time : Approx.4sec ~ 60sec (depending on model)
5. Run-life time : querantee up to 100,000 times.
6. Ambient temp. : -15℃ ~ 50℃
7. Weight : 250g ~ 1.1kg

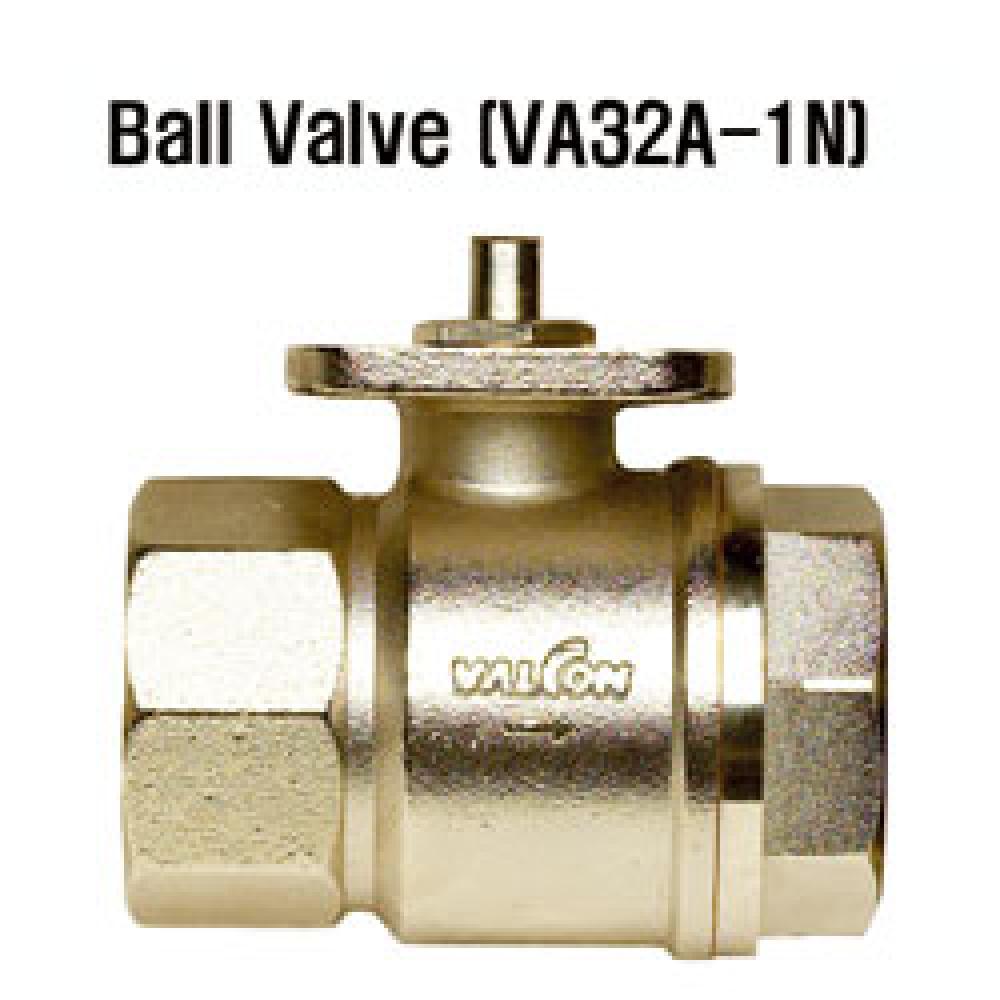

Ball Valve
1. Size : 1/4" ~ 1 1/2" (15A ~ 40A)
2. Material : Nikel plated Brass, Stainless Steel
3. Permitted Pressure : 10kgf.㎠ (142PSI)
4. Fluid media : Non-corrosive liquid & gas
5. Weight : 225g ~ 1,200g (depending on model)
6. Standard : NPT, BSPT, PT, Female/Male (possible by request)
