- VALCON is an electric ball valve used instead of a solenoid valve that leaks due to sludge.
- VALCON is an actuator ball valve that can observe the operating state when water is shut off.
- VALCON is a valve that can flow control and direction control with a stronger force than a pneumatic actuator.
- VALCON can be opened and closed types of with a water valve and an air valve.
- VALCON is applied and used in various places such as washing machine, shower, drain, sprinkler, fuel cell, ice maker, control device, heating, irrigation, etc.
Technical Specification

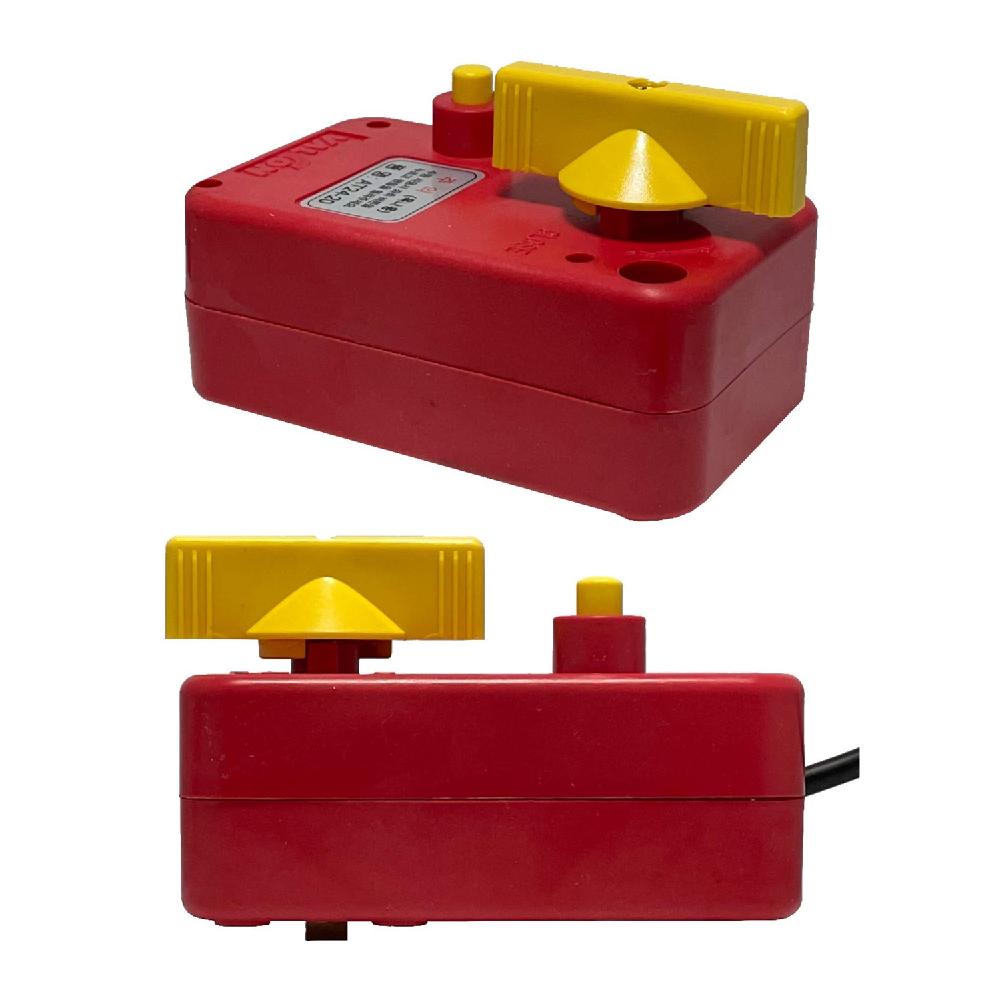

Model: AT24-20R
Control: Power control (Open : approval power / Close : Manual operation)
Power: DC 24V / 850mA
Consumption Power: Approx. 1.2W(in operation)
Max. Output torque: 40Kgf‧cm
Rotation Direction: Opens Counter-clock-wise / Closes clock-wise (TOP VIEW)
Operating time: Approx. 3sec.
Mechanical Life Span: Approx. 100,000 Cycles
Weight: Approx. 250g
Certification: RoHS
Ambient Environment: Indoor with no condensation
Ambient Humidity: 35 ~ 85% RH
Ambient Temperature: 15℃ ∼ 50℃

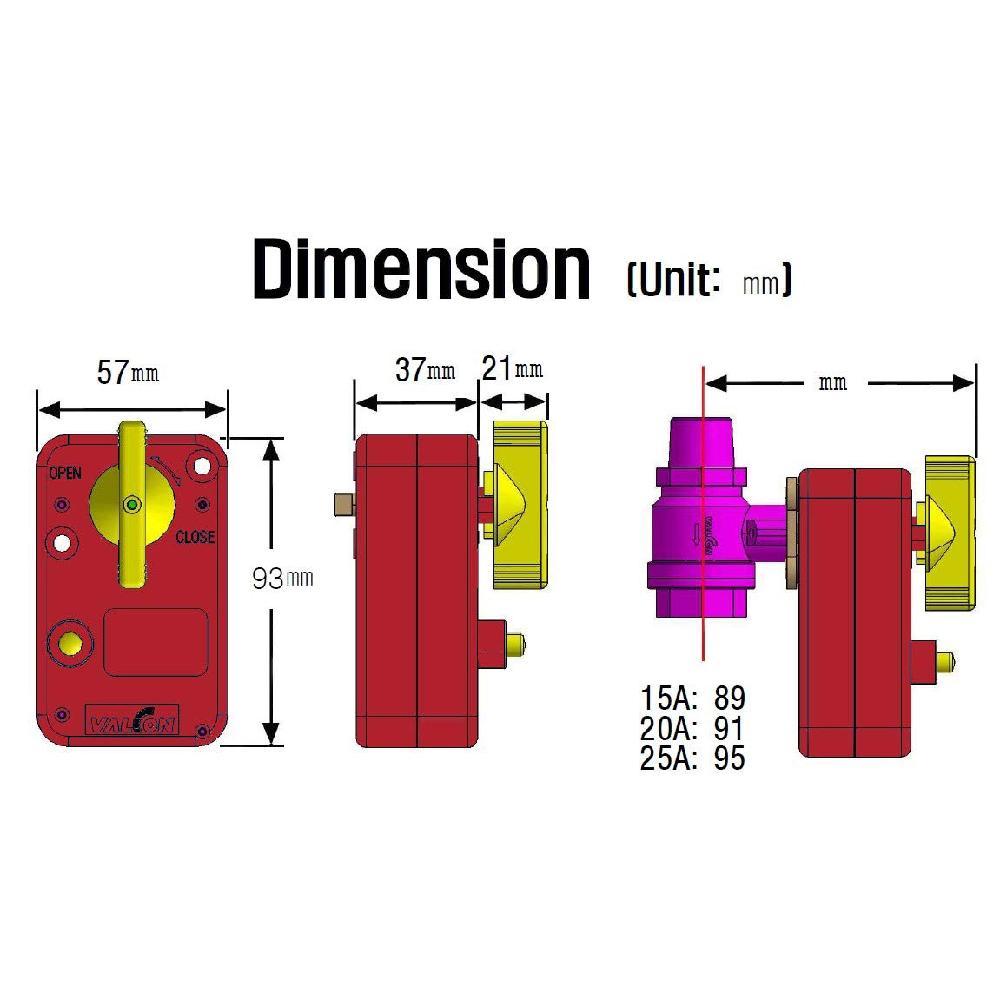

Application ball valve: 15A ~ 25A all products (Brass, SUS)
Installation Specification

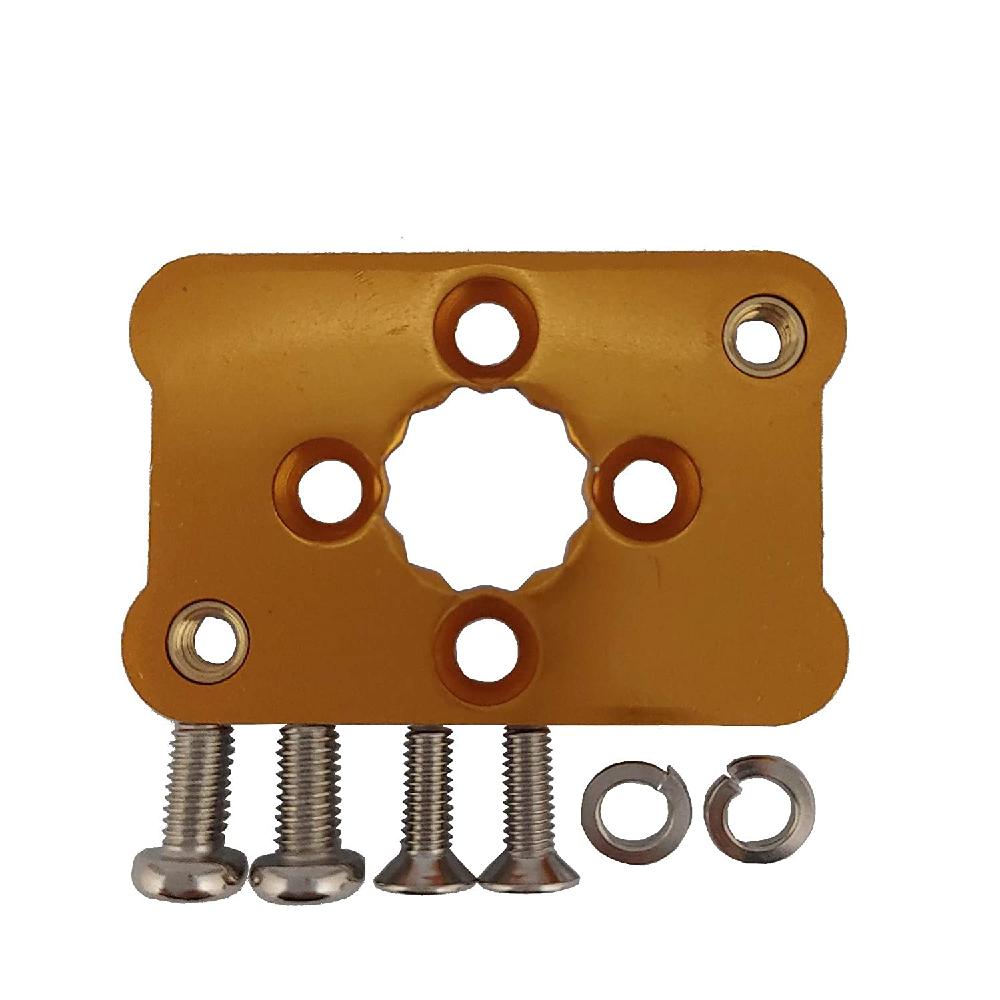

1.Please install the actuator the verticality way on the installed valve on piping

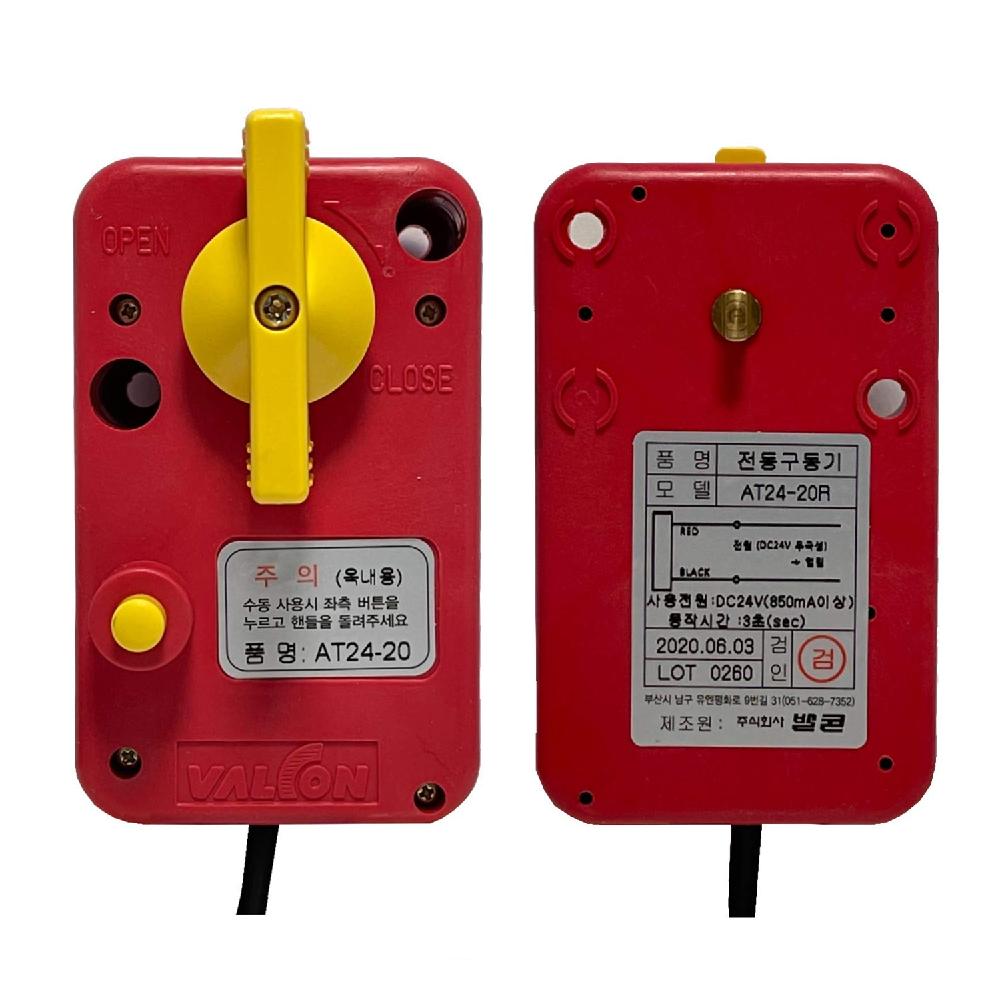

2.Please refer to wire-connection-draw of actuator and connect power line (DC 24V; non-polar)
3.The ball valve will be open when the emergency power line is operation
4.This actuator is for fire-fighting automation. Please manual operating when you want OPEN to CLOSE
CAUTION
1.Please install the actuator the verticality on the valve installed in the piping line
2.Please refer to wire-connection-draw of actuator
3.The actuator is life waterproof. Do not be inundation
4.Please care of interference when the handle of actuator move
