Introduction

PTFE is the most representative fluoric resin (PTFE, PCTTE, PFA, PVDF – 60% of all fluoric resins(Teflon)) and having very unique properties showing superior heat / low temperature / chemical / friction / adhesion resistance along with excellent electrical property. The material is widely used for the applications that require simultaneous multi properties (i.e Heat resistance + electrical property, Chemical resistance + Heat resistance, Non-adhesive + heat resistance) and, more particularly, for the applications that require chemical / agent resistance in chemical or semi-conductor industry.


Features

01. Operational Temperature = 260°C
- The product can be used in high temperature environment.
02. Low friction
- The product shows the lowest friction coefficient among all solid materials.
03. Superior chemical resistance
- The products is stable and safe against almost of all chemicals and agents.
04. Electrical property
- With low electric permittivity loss factor, the product holds superior electrical property and is stable under wide band frequencies.
05. Fire retardant
- Since the product has very low combustible energy, it can not be the cause for the second ignition

*Applications

In semi-conductor manufacturing equipment
 - Valve bellows, Gaskets, Tubes, Linings, Filters and etc.
General machine / auto parts
 - Bearings, Gaskets, Packing and etc.
Electrical insulator
 - Tapes, Films, Connectors, Terminals, Cable sheathes
Others
 - Sealing tapes for gas / water piping. Non-adhesive coater for kitchen. Roofing

*Types

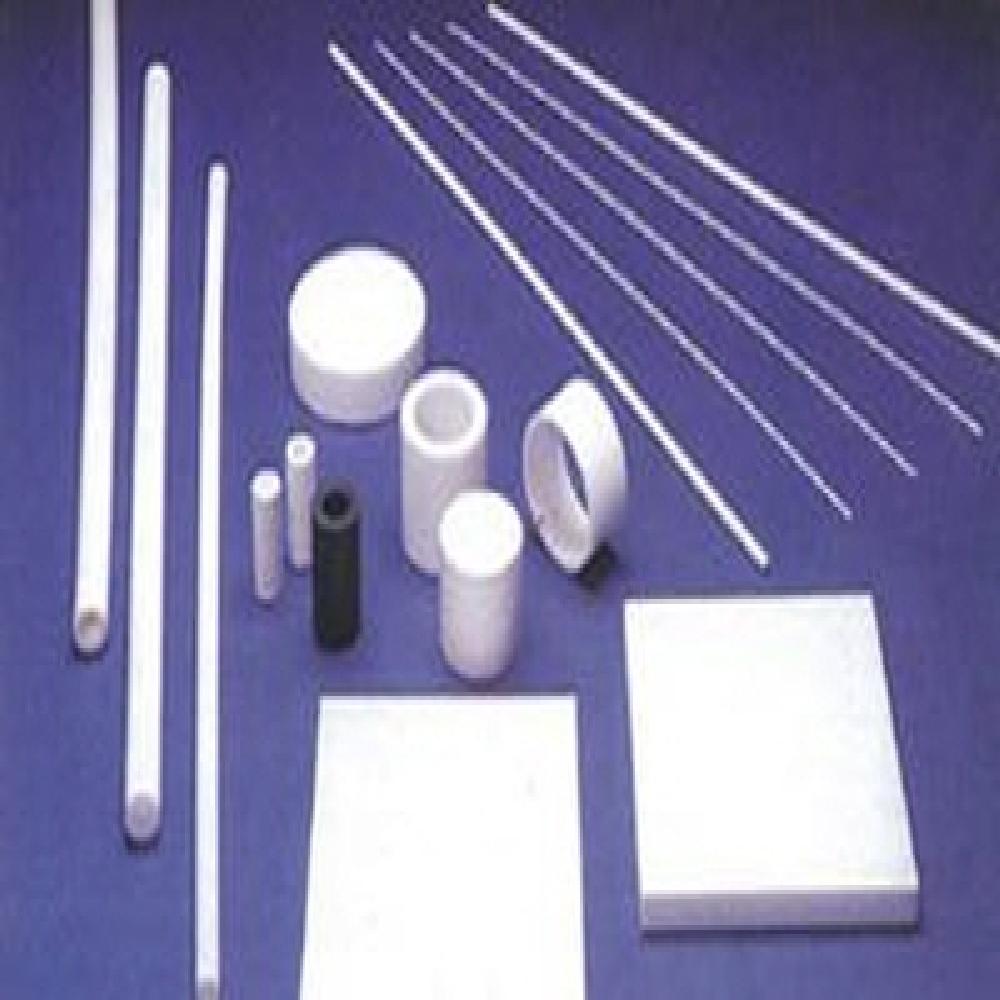

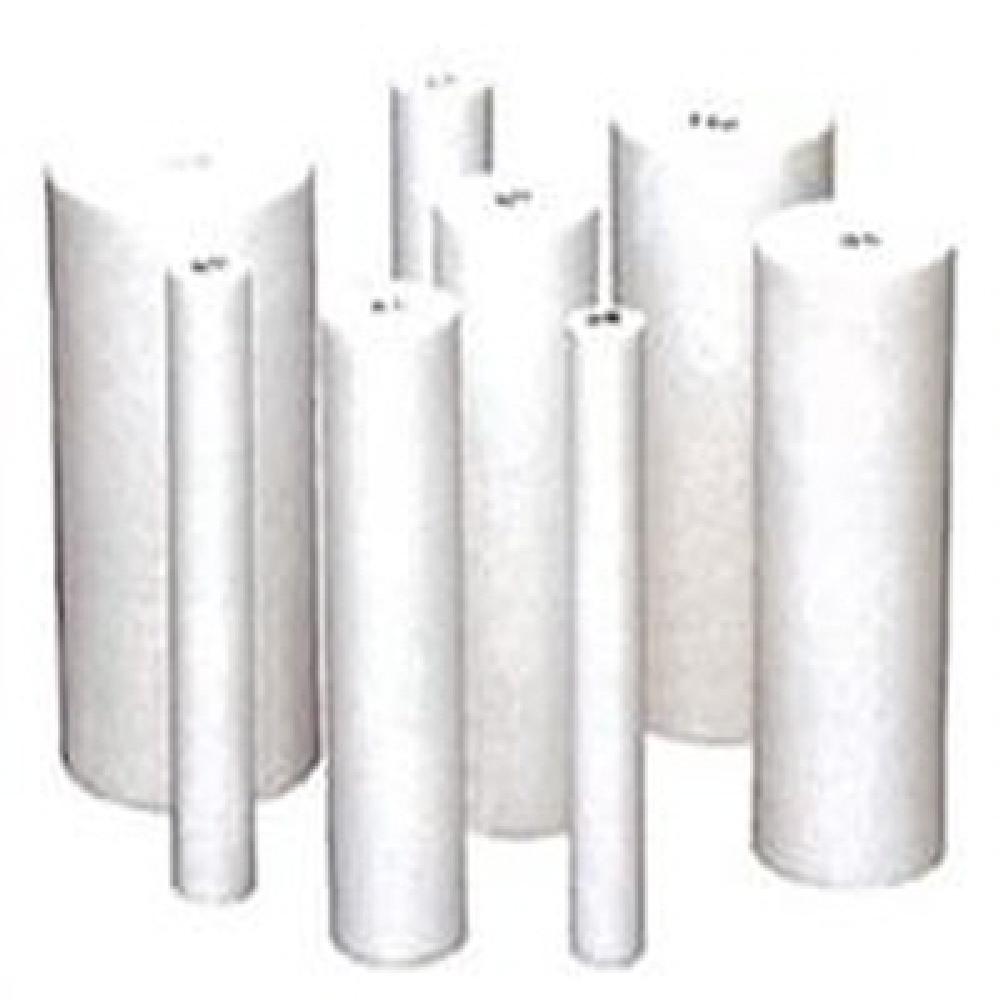

Pure PTFE
Filled PTFE

*PTFE

- Glass fiber 15%. 25%
- Graphite 15%
- Glass fiber 15% + MOS2 5%
- Carbon / Graphite 25%. 30%
- Bronze 40%. 60%
- Carbon fiber 10%. 15%
- Polymide 15%
Can be used to develop localized products
