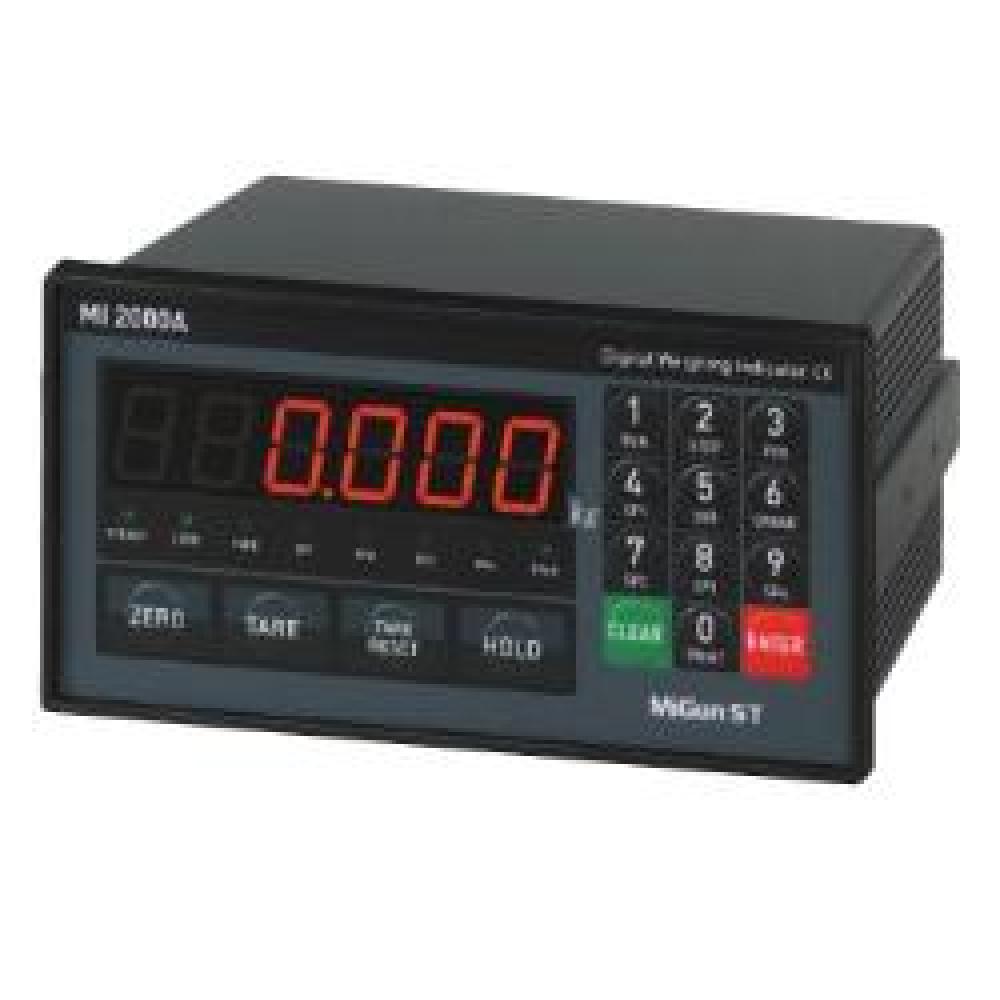

Weighing Scale Indicator MI-2000A
- Specification
| Input Sensitivity | 0.2μV / Digit |
| Load Cell Excitation | DC 10V ( - 5V ~ + 5V ) |
| Max. Signal Input Voltage | Max.32mV |
| Temperature Coefficient | [Zero] ±20PPM/°C / [Span] ±20PPM/°C |
| Input Noise | ±0.6 μV P.P |
| Input Impedance | Over 10ΜΩ |
| A/D Conversion Method | Sigma-Delta |
| A/D Resolution(Internal) | 520,000 Count(19bit) |
| A/D Sampling Rate | Max. 200times / Sec |
| Non-Linearity | 0.01% FS |
| Display Resolution(External) | 1/30,000 |
- Display Part
| Display | Parts | Specification |
| Main Display | 7Segments, 6 Digit RED FND Display | |
| Size :20.0mm(H)×13.0mm(W) | ||
| Min. Division | ×1, ×2, ×5, ×10, ×20, ×50 | |
| Max. display value | 999950 | |
| Under Zero value | "-" (Minus display) | |
| Status lamp | Steady, Zero, Tare, SP1, SP2, SP3, SP4, RTxD | Green color Condition display Lamp (8pcs) |
| K e y | Number, Function Key | Number Key, Function (16pcs) |
- Option
| Option No.1 | Analogue Output (0~10V) |
| Option No.2 | Analogue Output (4~20mA) |
| Option No.3 | Serial Interface : RS422 / RS485 |
| Option No.4 | BCD Input |
| Option No.5 | BCD Output |
-General Specification
|
Power Supply |
SMPS Free Voltage Power Supply(AC85~265V) |
|
Operating Temperature Range |
-10°C ~ 40°C |
|
Operating Humidity Range |
Under 85% Rh (non-condensing) |
|
External Dimension |
193mm(W X 100mm(H X 140mm(L) |
|
Net Weight(kg) |
About 1.7kg |
|
Gross Weight(kg) |
About 2.0kg |

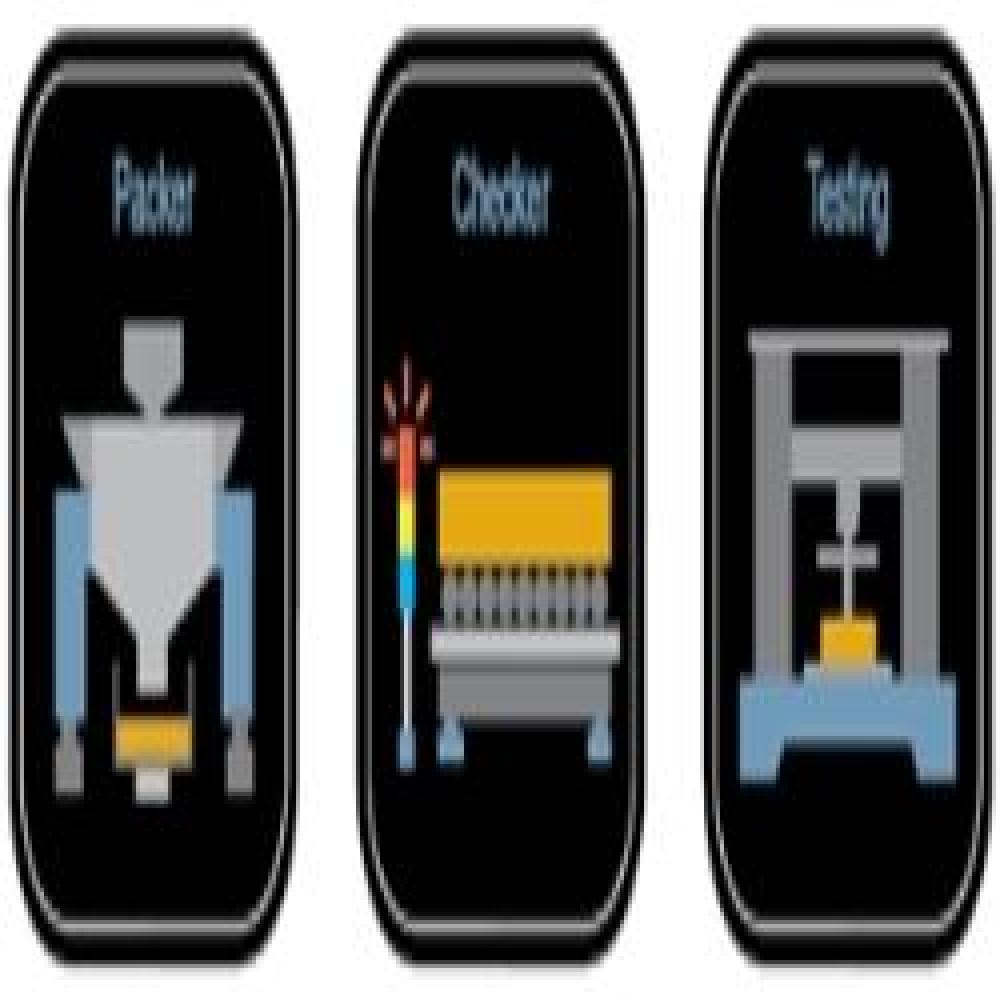

-Application & Cutting Size
| Application | MI Series Dimension and Panel Cutting Size |
![]() |
![]() |
| Product Details |
|
|---|
