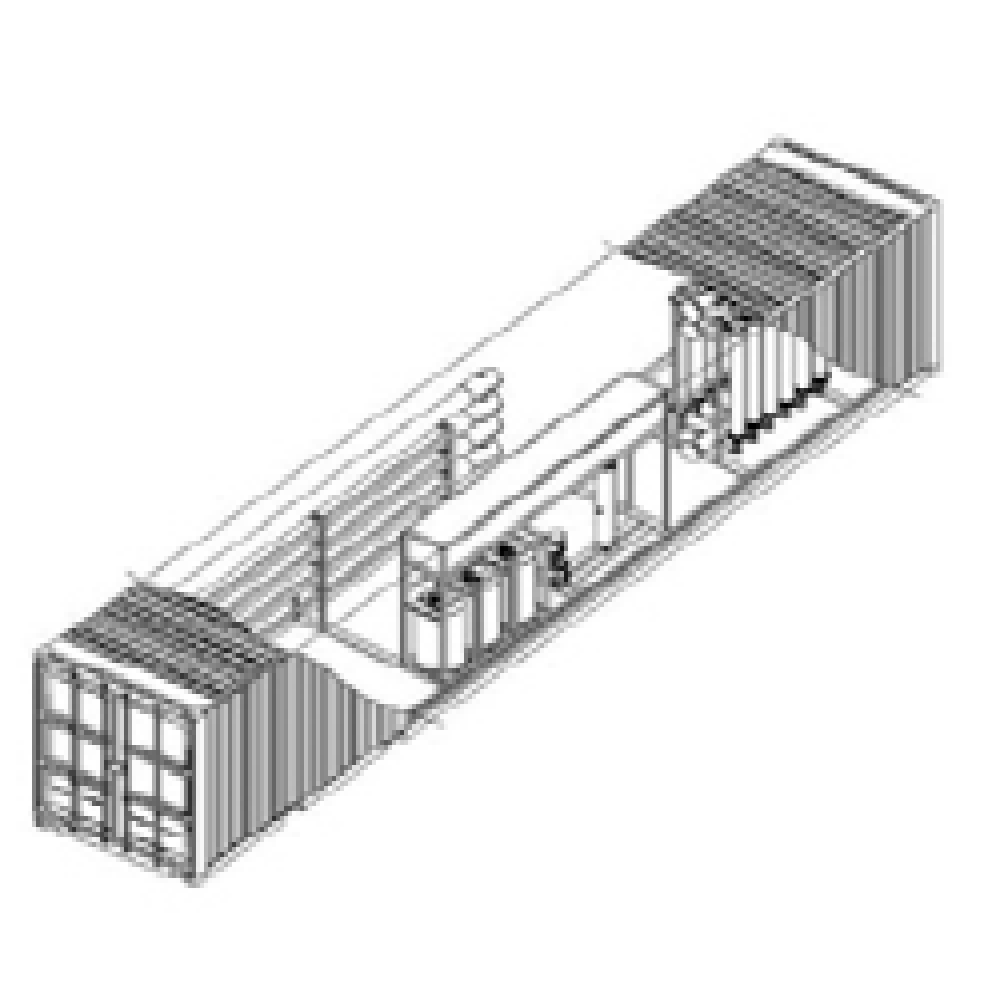

Containerized Seawater Desalination Package

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
Catalogue
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded

Model 20ft & 40ft Containerized SWRO Package
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

Get potable water in various area through small installation site

Containerized system for easy transportation & installation

- No additional construction for installation of the desalination system.

- Container size is customized ( 20ft or 40ft )

- Compact process of Micro Filtration + Ultra Filtration + Reverse Osmosis + CIP

- Easy and low cost maintenance by all-in-one pretreatment process.

- Membrane life is improved by remote control & monitoring system. (Option)

- Installation and transportation are improved in comparison with general desalination system which has high cost and low efficiency.

- System is preferentially installed and tested in the container for saving the installation time at construction site.

- Customized EPC plant that includes not only small scale but also large scale.

Specification

	Specification
Capacity(all process)	20ft : Max. 200 m³/day / 40ft : Max. 500 m³/day
Raw Water Quality	TDS 35,000 ~ 40,000ppm
Treated Water Quality	Below TDS 500ppm
Skid Frame	CS + Epoxy Coating (for preventing corrosion)
Piping	Low pressure piping : PVC material High pressure piping : 316L / 316 / Duplex 2205 / Super Duplex (Option)
Pretreatment	Micro Filtration + Ultra Filtration
Main treatment	Reverse Osmosis Membrane + Energy Recovery Device (ERD)
Electricity	Electricity is totally controlled by marshalling cabinet
Cleaning	Long-lived membrane through CIP with Greenwell's cleaning agents
Recovery	40%
Container	1. 20ft ( 5900 x 2310 x 2360 ) 2. 40ft ( 12100 x 2310 x 2360 )
Transportation & Installation	Easy transportation & installation in the island and other countries

Application

- Supply of potable water to constructionsite,hotel&resort, Beach, Island, Test system for pilot test, The place where lotsof water are temporally needed etc.
