[APM Beyond Power] APM 5000

  • Payment
    L/C(sight) , T/T
  • MOQ
    1 Set
  • Supply Ability
    9,999,999 Set per One-Time
  • Supply Details
    Customization

    Negotiable

  • Country of sale
    Asia, Americas, Europe, Africa, World Wide
  • Catalogue
  • PRICE

    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    APM
    Model APM 5000
  • origin
    Republic of Korea
  • Size(Capacity)
    It depends on the specification.
  • age-appropriate
    Adults
  • Condition
    New
  • Function
    detect partial discharge signals in UHF
  • Features

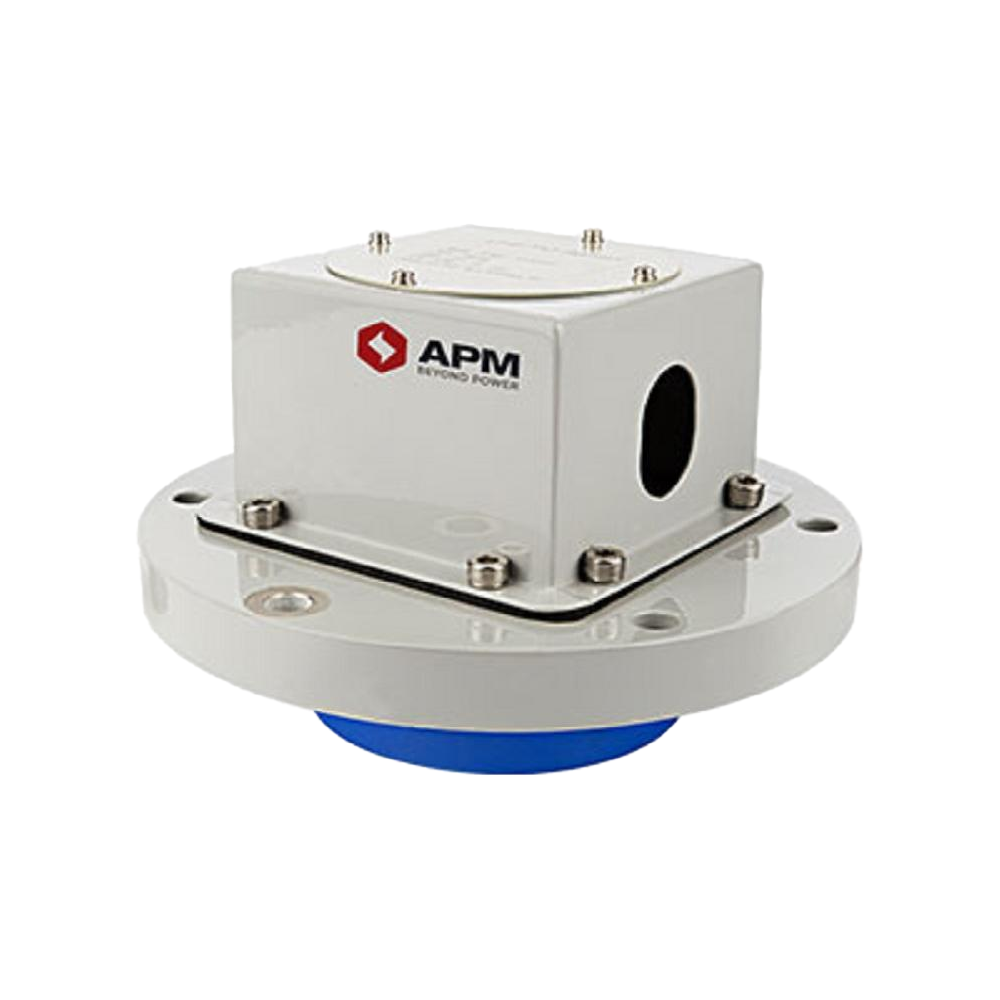

    insulating GIS spacer
  • Gender
    Male and female
  • Material
    electrical material, plastic, etc.


PRODUCT DESCRIPTION

APM 5000
APM 5000 detects and x-alerts various defects inside GIS by analyzing UHF signals generated by Partial Discharge that can cause progressive deterioration of insulating materials, ultimately leading to electrical breakdown.
Additional Details
 · Suitable for on-line Partial Discharge monitoring of extra-high voltage GIS and GIB
 · Able to detect less than 5 pC according to CIGRE TF 15/33.03.05
 · Compliant with EMC and electricity safety international standards such as
 · IEC 61000-4-X, IEC 60255-5, IEC 60068-2-X, IEC 60529/2001, IEC 60270, and CISPR22
Features
 · Superior Reliability and Accuracy, Capturing and analyzing PD data continuously, Super-reliable real - time OS .
 · Self-diagnosis function (Watch - dog function), Precise data analyzing and recording, Measuring PD signal in Real - Time / Event/Trend mode
 · Enterprise Solution, Supporting Client & Server
 · Intelligent Remote Access Management
 · User-friendly Operation, Analyzing and displaying PRPD/PRPS simultaneously, Generating reports automatically, Auto - regenerating event data, Convenient x-alert system by email and SMS, Supporting SCADA and IEC 61850
 · Enhanced Noise Control, Unmatched noise elimination with 3 x 3 combinational filter matrix, Noise Gating with broadband noise sensor (Patent pending), Differentiating PD signal from noise with advanced Neural Network
Diagnosis Unit
Power 90 to 240 VAC, 50/60Hz
Input More than 250 channels
Diagnosis Built in neural network engine classifies PD into 5 types: Protrusion Electrode, Floating Electrode, Defective Insulator, Free Moving Particle, and Noise
Alarming HMI, Email, IEC61850
Graphic Tools PRPD, PRPS, Trend, and others
Channel Configuration  Three threshold levels for alarming can be configured for each channel individually
IEC61850  Enabled
Remote Monitoring  Enabled
Communication  10/100 Base-T/TX Ethernet
Storage  Database
Self Test Enabled

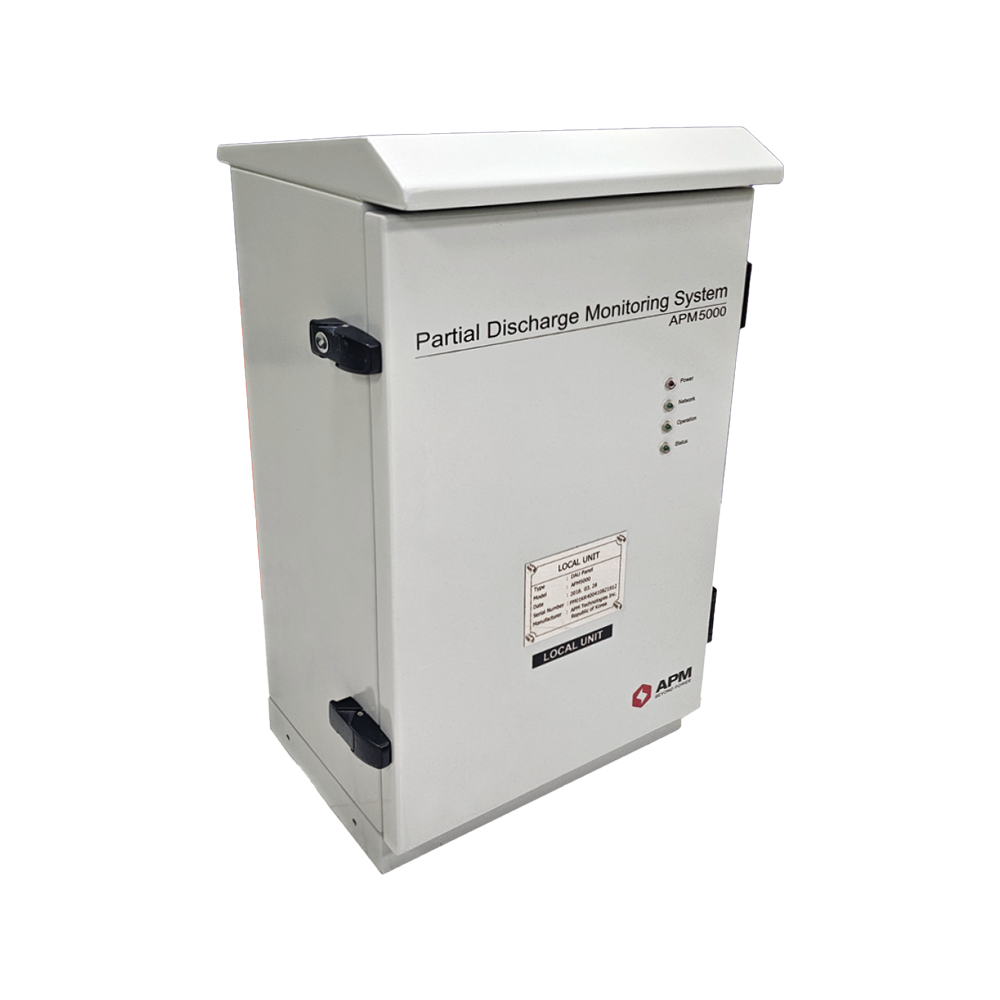

Local Unit
Power 90 to 240 VAC, 50/60Hz 120 to 370 VDC
Input 8 UHF Channels, N-Type Connector
Sensitivity Can detect discharge less than 5 pC within monitoring area of GIS/GIB
Input Bandwidth Wide Bandwidth 100~2000MHz
Dynamic Input Range -65 to 0 dBm
Band Pass Filter Combination of 3 LPF and 3 HPF
Noise Gating Enabled (External Noise Sensor)
Communication Fiber Optic (100Base-FX)
Notification 4 x LED Status Indicators
Operating Temperature -25°C to 55°C
Operating Humidity 100%
Enclosure Rating IP54
Dimensions 355 x 625 x 270 (WxHxD) (D) mm
Company Overview
APM Technologies Inc. (APM) is a global leader in Partial Discharge monitoring system based in South Korea developing technologies for Partial Discharge monitoring system and analysis for the enhancement, reliability, and maintenance of substation facilities, particularly for their Gas Insulated Switchgear, Transformer, Medium Voltage Swichgear, EHV Cables, and Cable Terminations.
APM’s products enable the intelligent digital substation by means of supporting global smart grid standards such as IEC 61850.

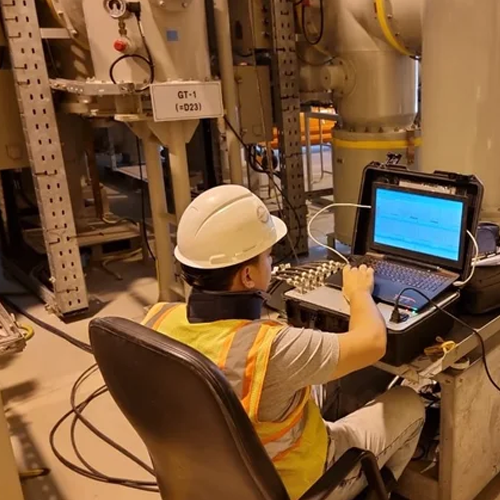

APM (Advanced PD Monitoring) series have been adopted for numerous governmental and private projects around the world's first PD Monitoring Manufacturer approved by Saudi Electricity Company . APM 5000 is the on-line, real-time, fixed system to measure the PD in GIS. APM 2000 is portable and it detects, analyses and records ultra-wide bandwidth of electro wave signals by highly sensitive UHF sensors in all voltage ranges which can be generated by Partial Discharge in GIS.
