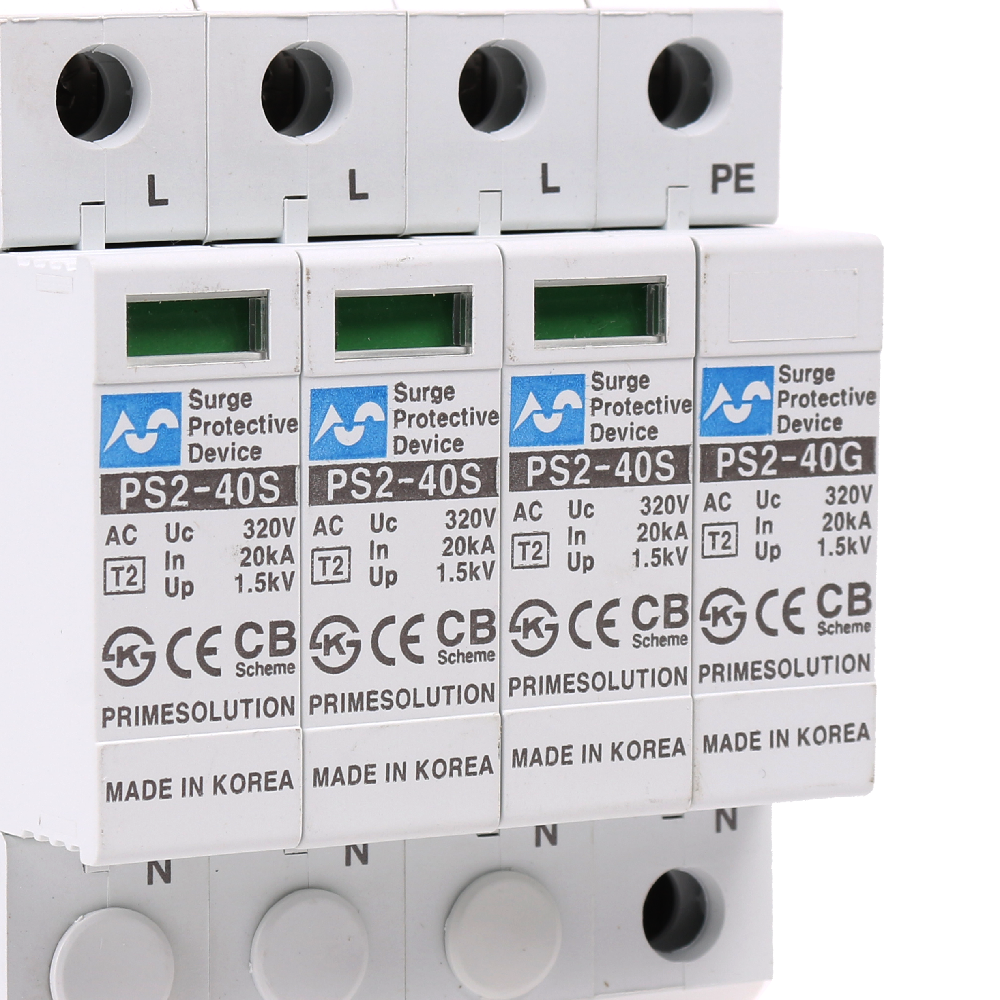

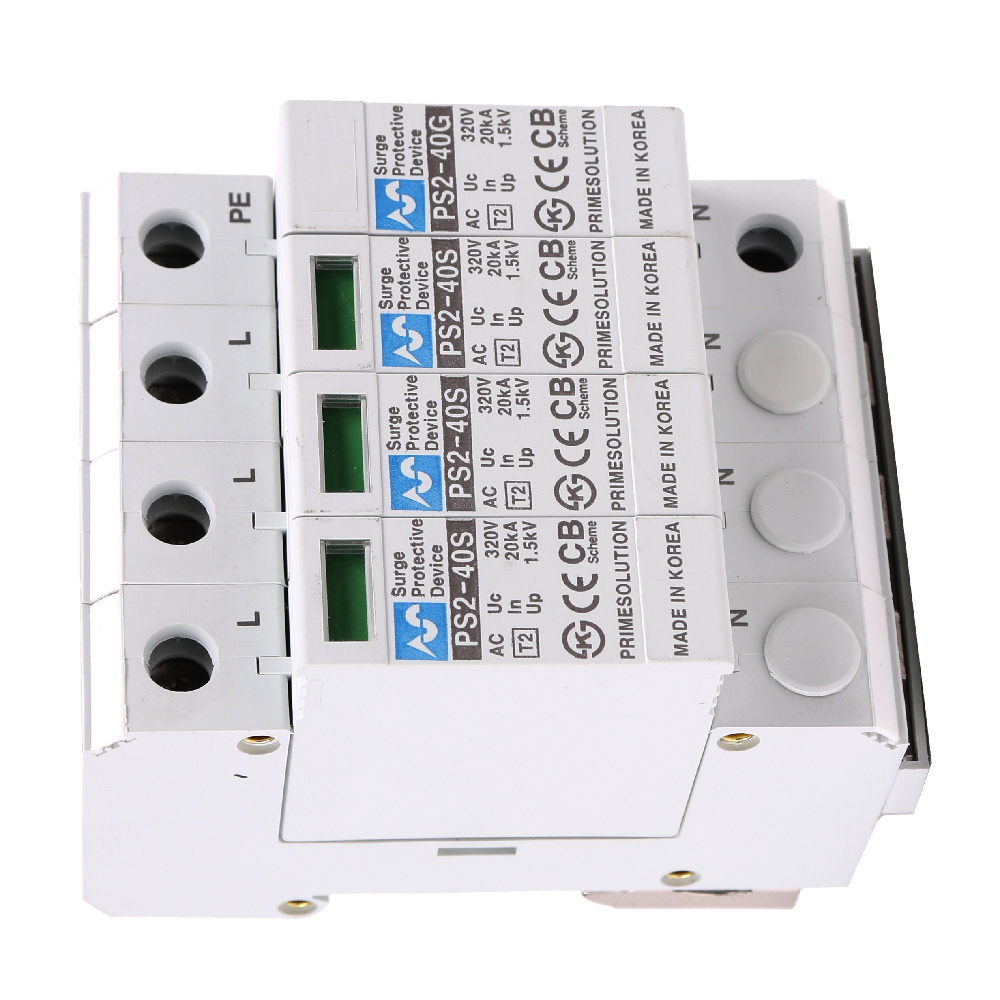

SPDs for Power Lines - PS2-40S3P/40G
PS Series are extra compact UL Type 1 Surge Protective Devices (SPDs) designed
to protect single phase electrical distribution systems against the harmful effects of transient surges.
Our complete SPD product & solutions address a multitude of application for power,
telephony and data line protection.
They are suitable for use in central base, building entrances, transportation lines and industrial process control and military facilities.
● Specifcations
| Model No. | PS2-40S3P | PS2-40S3P/40G | |
|---|---|---|---|
| Rated system voltage | Tri-Phase 110~440V 3W+GND | Tri-Phase 110~440V 4W+GND | |
| MCOV (Vac) | 110 ~ 320 | ||
| In(8/20㎲) (kA) | 120 | 20 | |
| Imax(8/20㎲) (kA) | 40 | 40 | |
| VPR (Vpk) | L-N | 1.5 | 1.5 |
| N-G | - | 1.5 | |
| SCCR (kA) | 200 | 200 | |
| Size(inch/mm) | |
|---|---|
| W1 | 0.7 / 18 |
| W2 | 1.41 / 36 |
| W3 | 2.12 / 54 |
| W4 | 2.83 / 72 |
| H | 3.54 / 90 |
| D | 2.57 / 65.5 |
