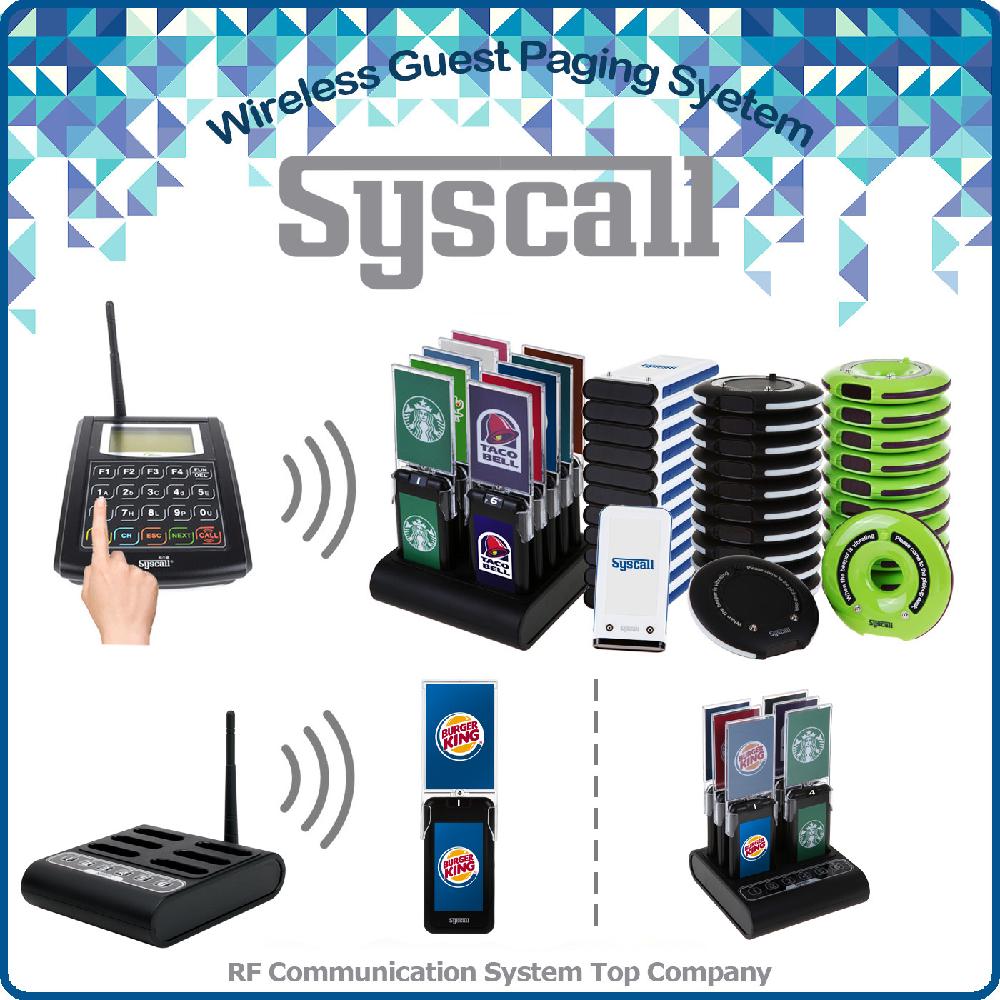

▶WIRELESS GUEST PAGING SYSTEM◀





Product Description


TRANSMITTER





GP-1000T



- Programmable through its function mode






Model	GP-1000T
Dimension	130(W) x 170(L) x 32(H)mm
Color	Black
Net Weight	410g
Weight per box	0.87kg (with Adapter)
Frequency Range	433.42MHz
Type of Modulation	FSK
Power Source	DC 12V / 1A
Adapter Input	AC100~240V~, 50/60Hz, 0.3A
Transmit Power	+10dBm (10mW)
Receive Sensitivity	-115dBm
Antenna Type	Dipole Antenna
Compatibility	with GP-100R, GP-200R-10C (Syscall guest pagers)

GUEST PAGER

 GP-100R





- Compact and unique doughnut design

- Shock-absorbing silicon ring

- Space saving stacker design

- Number setting range 1~9999

- It can be fully charged less than 3 hours from dead battery.




Model	GP-100R
Dimension	95(W) x 95(L) x 17(H)mm
Color	Red / Green
Net Weight	86g
Weight per box	1.35kg (10pcs+Charger+Adapter)
Frequency Range	433.42MHz
Type of Modulation	FSK
Power Source	DC 8V/3A & LI-POLYMER Battery                           (Rechargeable)
Adapter Input	100-240V~, 50/60Hz, 1.1A
Receive Sensitivity	-115dBm
Antenna Type	Helical Antenna
Compatibility	with Syscall GP-1000T (Transmitter)









GP-101R



- New product with great design!

- Guest pager is a must-have system for queue management.

- The new coaster guest pager GP-101R has got thinner and mat finish which make the pager look more premium.

- Also you can design and add your logo on the surface.




Model	GP-101R
Dimension	95(W) x 95(L) x 15(H)mm
Color	Black
Net Weight	75g
Weight per box	1.27kg (10pcs+Charger+Adapter)
Frequency Range	433.42MHz
Type of Modulation	FSK
Power Source	DC 8V/3A & LI-POLYMER Battery                           (Rechargeable)
Adapter Input	100-240V~, 50/60Hz, 1.1A
Receive Sensitivity	-115dBm
Antenna Type	Helical Antenna
Compatibility	with Syscall GP-1000T (Transmitter)






GP-300R





- New product with rectangular design!


- Guest pager is a must-have system for queue management.


- Also you can design and add your logo on the surface.






Model	GP-300R
Dimension	58(W) x 115(L) x 15(H)mm
Color	White
Net Weight	73g
Weight per box	1.23kg (10pcs+Charger+Adapter)
Frequency Range	433.42MHz
Type of Modulation	FSK
Power Source	DC 8V/3A & LI-POLYMER Battery                 (Rechargeable)
Adapter Input	100-240V~, 50/60Hz, 1.1A
Receive Sensitivity	-115dBm
Antenna Type	Helical Antenna
Compatibility	with Syscall GP-1000T (Transmitter)








Application


CAFE


Hand over the guest pager to customers after ordering.


When order is ready, call them and return the guest pager.


FOOD COURT


Hand over the guest pager to customers after ordering.


When food is ready, call them and return the guest pager.











RECEPTION (hospital, pharmacy etc.)


Hand over the guest pager to waiting patients.


Call the guest pager in their sequence.





BENEFITS



• Minimize crowds in waiting line
• Reduce staff chaos & improve ambience
• Notify people faster
• Reduce staff cost
• Improve work efficiency


















Simple Operation



1. Guest pager number setting

1) Random number use: allocate any numbers whenever it is used.



2) Fixed number use: allocate guest pager’s numbers beforehand.

2. Press the guest pager number in GP-1000T.



▶ Repeater will assist to enhance the working distance approximately 2 times.





▶WIRELESS SLIM GUEST PAGING SYSTEM◀



Product Description

SLIM TYPE GUEST PAGER

GP-200RT-6C



- Slim and neat design

- All-in-one style (Transmitter=Charger)

- Advertisement with sticker on the pagers and also the cradle


Model	GP-200T	GP-200R
Dimension	140(W) x 149(L) x 38(H)mm	53(W) x 107(L) x 10(H)mm
Color	Black	Black
Net Weight	235g	45g
Weight per box	1.26kg (200R 6pcs +200T 1pc +Adapter)
Frequency Range	433.42MHz	433.42MHz
Type of Modulation	FSK	FSK
Power Source	DC 8V/3A	DC 3.7V by battery (Rechargeable)
Adapter Input	100~240V~, 50/60Hz, 1.1A	-
Receive Sensitivity	-	-115dBm
Antenna Type	Dipole Antenna	Helical Antenna
Compatibility	with Syscall GP-200R	with Syscall GP-200T

GP-200R-10C






Model	GP-200R-10C
Dimension	140(W) x 149(L) x 121(H)mm
Color	Black
Net Weight	710g
Weight per box	1.44kg (10pcs + Charger)
Frequency Range	433.42MHz
Type of Modulation	FSK
Power Source	DC 8V/3A
Adapter Input	100-240V~, 50/60Hz, 1.1A
Antenna Type	Dipole Antenna
Compatibility	with Syscall GP-1000T (Transmitter)



ApplicationCAFE

Hand over the guest pager to customers after ordering.

When order is ready, call them and return the guest pager.









FOOD COURT


Hand over the guest pager to customers after ordering.


When food is ready, call them and return the guest pager.












RECEPTION (hospital, pharmacy etc.)


Hand over the guest pager to waiting patients.


Call the guest pager in their sequence.





BENEFITS



• Minimize crowds in waiting line
• Reduce staff chaos & improve ambience
• Notify people faster
• Reduce staff cost
• Improve work efficiency






Simple Operation





1. Setting the guest pager numbers through a function mode (no.5) before using the system.


2. Press the guest pager number to call.





▶ Repeater will assist to enhance the working distance approximately 2 times.
