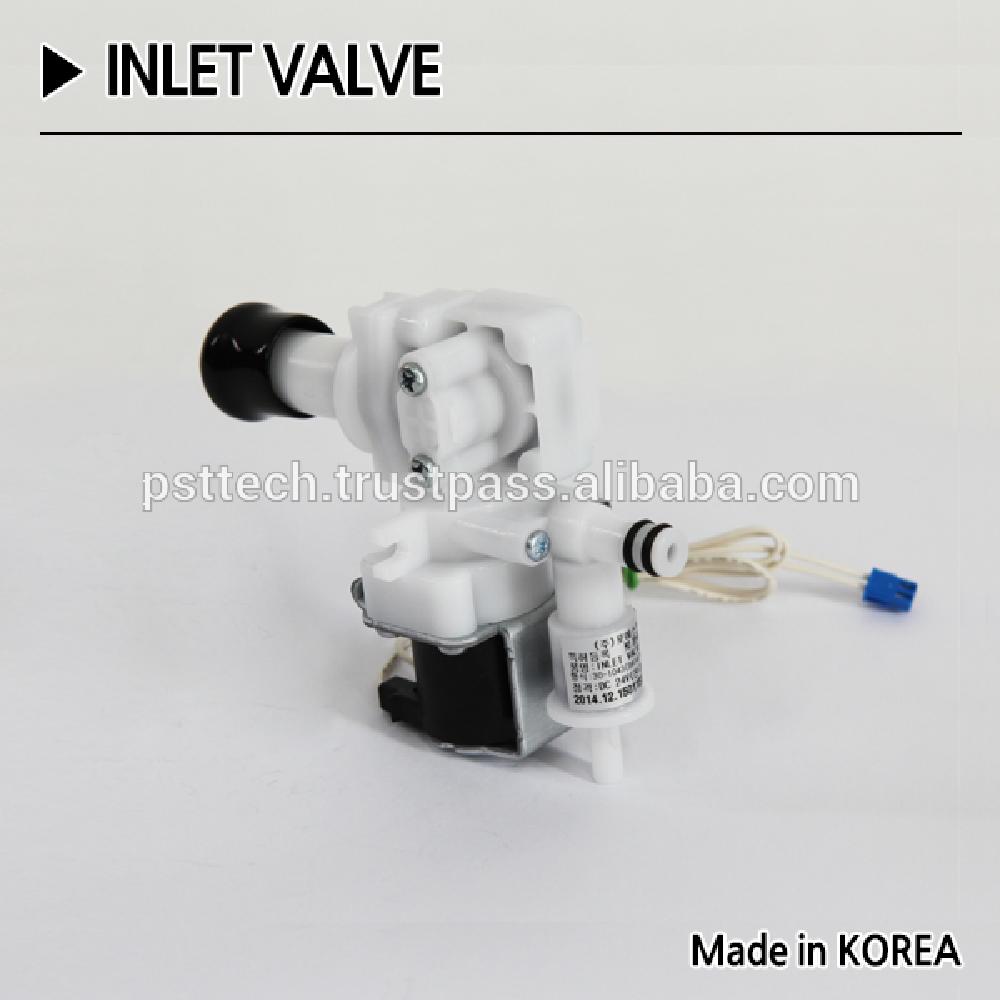

Quick Details

• Standard or Nonstandard: Standard
• Structure: Control
• Pressure: Medium Pressure
• Power: Solenoid
• Material: Plastic
• Temperature of Media: Medium Temperature
• Media: Water
• Place of Origin: Gyeongsangnam-do, South Korea
• Model Number: 30-1043
• Brand Name: PST

Usage Environment
1. Usage water quality: Tap water, drinking water.
2.Usage water Temperature:  0∼40℃
3. Usage Water Pressure Range:: 0.1 ∼ 0.15Mpa
4.Usage temperature Range:0∼40℃
5.Usage Humidity Range: under 95%RH
6. Storage Temperature Range:-20∼60℃
7. Storage Humidity Range: Under 95%RH
8. Sealing Performance: No water drop and breakage when water pressure been reached at 18Kgf/cm² as working voltage was turned OFF
9.Max. withstand againt water pressure: No water drop and breakage when water pressure been reached at 50Kgf/cm² for 1 minute as working voltage was turned OFF

SPECIFICATIONS

1. Usage water quality: Tap water, drinking water.
2.Usage water Temperature:  0∼40℃
3. Usage Water Pressure Range:: 0.1 ∼ 0.15Mpa
4.Usage temperature Range:0∼40℃
5.Usage Humidity Range: under 95%RH
6. Storage Temperature Range:-20∼60℃
7. Storage Humidity Range: Under 95%RH
8. Sealing Performance: No water drop and breakage when water pressure been reached at 18Kgf/cm² as working voltage was turned OFF
9.Max. withstand againt water pressure: No water drop and breakage when water pressure been reached at 50Kgf/cm² for 1 minute as working voltage was turned OFF
