Plate heat exchangers
Servan air/air plate heat exchangers, made of corrosion resistant aluminum, are installed within air handling units and ventilators to recover heat energy. Its airtight structure prevents cross-contamination of air, making it ideal for providing clean and safe HVAC in buildings such as medical facilities, laboratories, cleanrooms, and swimming pools. All models are AHRI and KOLAS certified.

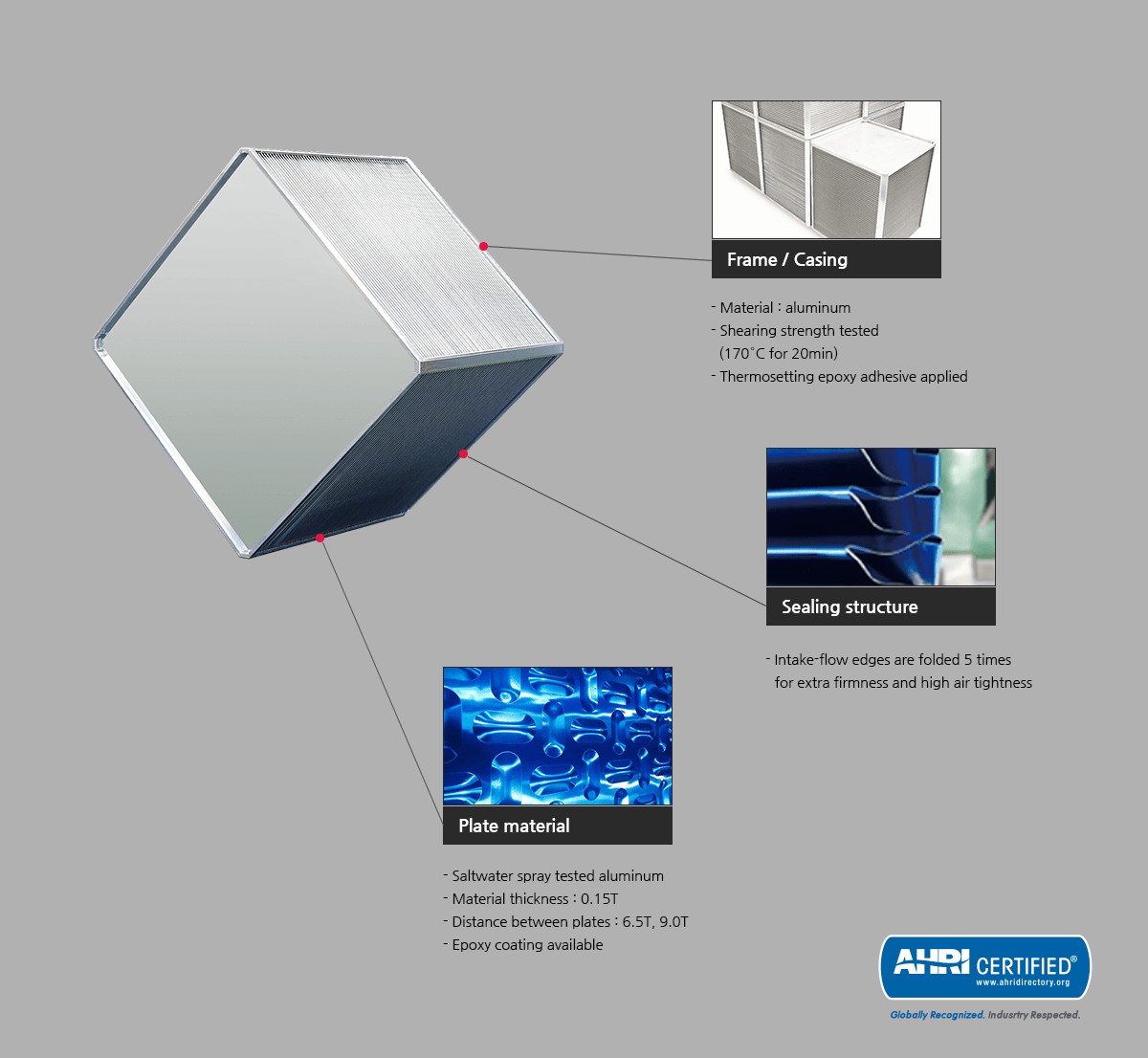

Features
– Heat recovery efficiency of 65% and above
– Cross-contamination free : complete airtightness
– Saltwater spray tested aluminum material
– Epoxy coated plate (optional)
– All models are AHRI certified
– Test report by KOLAS certified institute
– Edges are foled 5 times for extra firmness and airtightness
– Edge length : 500–1600mm

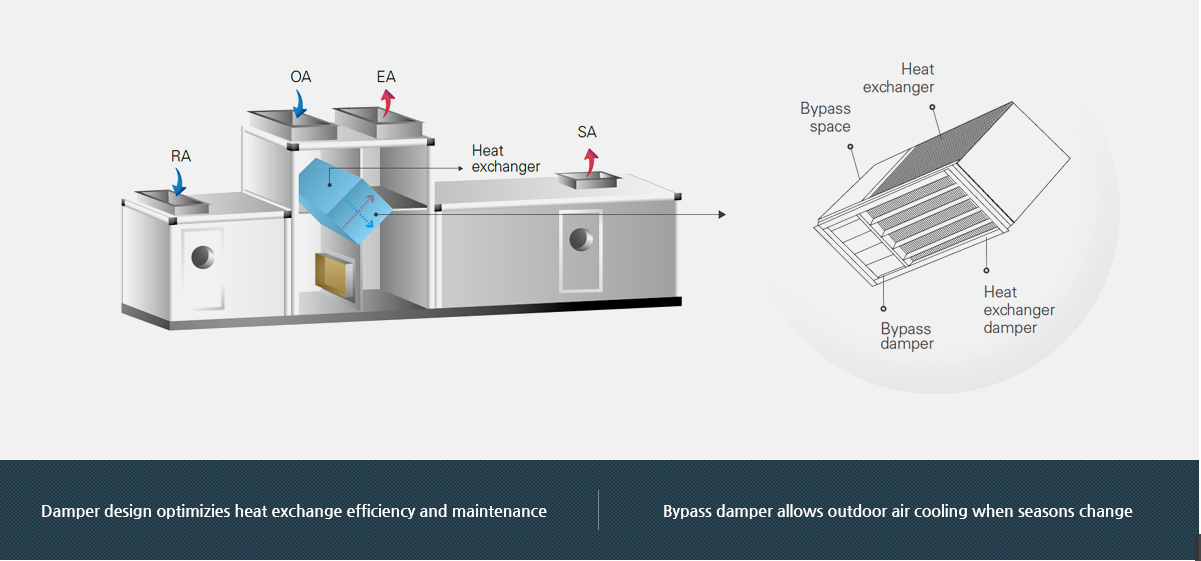

Installation Position




Saltwater spray test
