DESCRIPTION

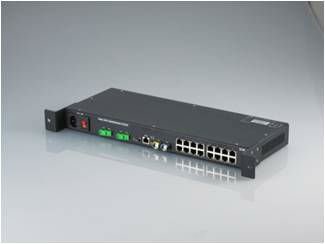

This product can transmit 10/100/1000Mbps Ethernet data through 1 Core optical cable, and can be composed as such various networks as Point To Point, Linear Add/Drop and  Ring. It has built-in by-pass function to automatically detour when the power supply is in trouble. Having Ethernet input and output display LED on the transmission and receiving part, it shows the communication state visually with no other devices. The 16 Ethernet ports can be extended without HUB. Management (N.M.S) system provides Graphic User Interface(GUI ) using LAN Interface, making it easy to maintain, repair and operate the system.

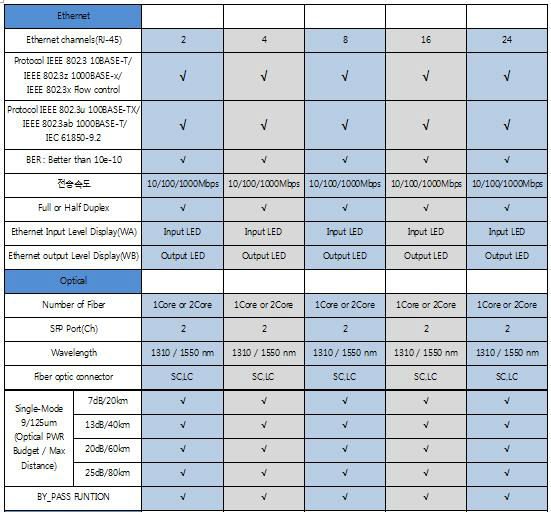

FEATURES

-. 1 fiber (WDM) or 2 fiber transmission

-. 2 fiber optic port, 16 UTP port RT

    2 fiber optic port, 16 UTP port COT

-. IEEE802.3 10Base-T, 802.3u 100Base-TX and

    100Base-FX,802.3ab 1000Base-TX

-. Switch bandwidth 36Gbps

-. 10/100/1000Mbps Auto-Negotiation

-. Full-Duplex, Half-Duplex mode Auto-negotiation

-. Point To Point and Linear Add/Drop and Ring support

-. Support port mirroring

-. SNMP v1/v2, CLI, HTTP etc Network Management

-. 4K VLAN (IEEE 802.1Q), Port Base VLAN

-. Ring topology 250msec

NMS ( option )

-.CCTV, ITV and traffic control

  System

-.CATV System

-.Security System

-.Process control and monitoring

-  System
