1 Channel Fiber Optic Audio Converter Language Option French

  • Payment
    T/T
  • MOQ
    Negotiable
  • Country of sale
    World Wide
  • PRICE
    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    Unbranded

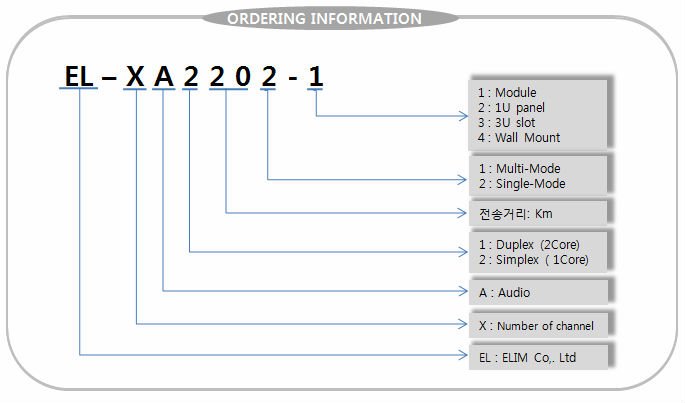

    Model EL-A2202 T/RX
  • origin
    Republic of Korea
  • Size(Capacity)
fiber optic audio link series



DESCRIPTION

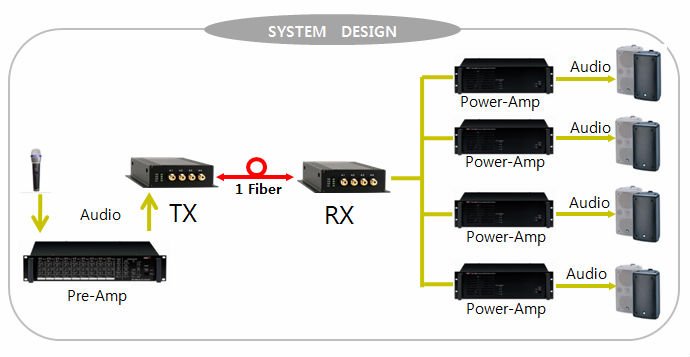

This product is a real-time transmission and receiving equipment which transmits audio signals of n channels of MIC (PRE-AMP Output) and MAIN-AMP with one channel through 1Core optical cable.

It can make long-distance transmission with no relay and does not receive influence from electric or magnetic field by using optical characteristic. The user can check the data transmission and receiving visually through the input and output display LED. For the multi-channel equipment, image signal input and output voltage and the optical cable cut can be checked through 7Segment LED on the front panel.

.



FEATURES

-.High quality voice transmission

-.Long-distance transmission with no-relay using the optical characteristics of optical communications(M/M : Maximum Transmission Distance 3Km), (S/M : Maximum Transmission Distance 190Km)

-.Image Signal Level Display & Built-in Optical Cable Cut Display Function

-. Multiple Use of AC 110V / 220V

-.Perfect protection from the surrounding noise

-.Built-in 7Segment LED to display image input and output voltage display per channel (supporting NTSC, PAL, SECAM )

-.ECP Performance Certification, Electromagnetic Waves, K Mark, Venture Business, INNOBIZ, GS, CE Certification



NMS ( option )

. Optical Cable Cut Alarm Function

. Optical Equipment Abnormality Alarm Function

. Optical Equipment History Management Function







ELIM
Model (Audio) A
Transmission option Tx / Rx
Audio
Audio In/out Level 0.775V rms
(600 Ohms)
Audio channels(RCA) 1
Digital Uncompressed Audio 10 bit
Total harmonic distortion -62dB
Single-to-Noise Ratio > 63dB
Audio Input Level Display(Tx) Input LED
Audio output Level Display(Rx) Output LED
Optical
Number of Fiber 1Core
Wavelength 850/1310/1550 nm
Fiber optic connector ST or SC
Single-Mode
9/125um
(Optical PWR Budget / Max Distance)
7dB/20km
13dB/40km
20dB/60km
25dB/80km
Multi-Mode
62.5/125um
(Optical PWR Budget / Max Distance)
9dB/3km
(850nm)
3dB/3km
(1310nm)
Electrical
Power Supply(12V DC) 200mA
Environmeatal
Operating Temp -40°C to +70°C
MTBF >100,000 hours
Mechanical
Case Type
(W×H×D)
Unit:mm
A Module
(87×32×113)
B Module
(123×35×220)
-
C Module
(123×48×220)
-
1U Pannel
(483×132×275)
2U pannel
(483×88×330)
-
2U Case
(483×88×330)
-
3U(A) Case
(483×132×275)
3U Case
(483×132×275)
-
6U Case
(483×264×275)
-













kyp-1388.tif-52215 copy.jpg



















1 Channel Fiber Optic Audio Converter 1 Channel Fiber Optic Audio Converter
