Fiberglass Reinforced Plastic (FRP)

Snug environment : As FRP diffusion light is excellent, work environment and indoor environment are good.
Energy saving effect : As the product uses natural light, it has energy saving effect.

Property of BLUE SKY FRP daylight collecting panel

Description of the product

• Excellent daylight collecting performance
  - It provides comfortable space by excellent penetration ratio and prevention of dazzling thank to light scattering effect.
• Comfortable working environment
  - As the FRP daylight collecting panel has excellent light diffusion, it provides comfortable work environment and indoor environment.
• Energy saving effect
  - The product is effective for energy saving as it uses natural light.
• Light weight
  - The weight is only half of the glass and it is easy to transport and simple to install the product. Thus, the product has excellent manpower saving effect.
• How to handle
  - As it is heavy weight product, you need to pay attention to the safety in loading and unloading and transportation of the product.
  - Please be careful not to give impact to the both corners of the product in moving and transporting the product. The impact may cause damage to the product.

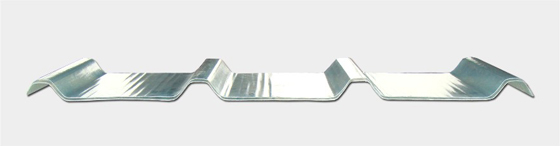

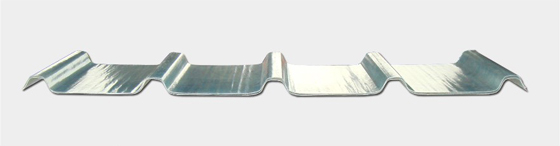

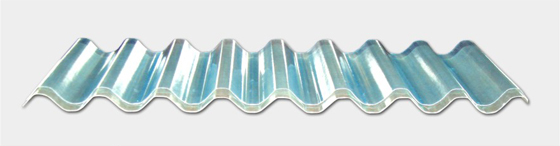

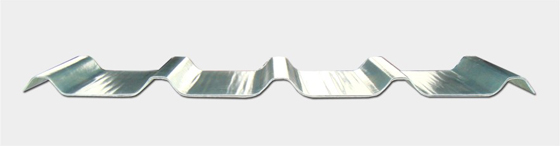

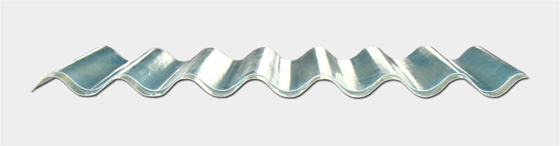

Shape of BLUE SKY FRP daylight collecting panel

Product name	Forming
BS-F 250
Effective Width (mm)	Depth (mm)	Thickness (mm)
1000	35	1.2T ~ 2.3T

Product name	Forming
BS-F 250L
Effective Width (mm)	Depth (mm)	Thickness (mm)
1000	30	1.2T ~ 2.3T

Product name	Forming
BS-F335
Effective Width (mm)	Depth (mm)	Thickness (mm)
1000	35	1.2T ~ 2.3T

Product name	Forming
BS-F 115
Effective Width (mm)	Depth (mm)	Thickness (mm)
920	35	1.2T ~ 2.0T

Product name	Forming
BS-F 130
Effective Width (mm)	Depth (mm)	Thickness (mm)
910	36	1.2T ~ 2.0T

Product name	Picture	Forming
BS-F 102
Effective Width (mm)		Depth (mm)	Thickness (mm)
960		30	1.2T ~ 2.3T

Product name	Picture	Forming
BS-F220
Effective Width (mm)		Depth (mm)	Thickness (mm)
660		71.5	1.2T ~ 2.3T

Product name	Picture	Forming
BS-F 76
Effective Width (mm)		Depth (mm)	Thickness (mm)
760		18	1.2T ~ 2.0T

Product name	Picture	Forming
BS-F76L
Effective Width (mm)		Depth (mm)	Thickness (mm)
988		18	1.2T ~ 2.0T

Product name	Picture	Forming
BS-F63
Effective Width (mm)		Depth (mm)	Thickness (mm)
690		16	1.2T ~ 2.0T

Product name	Picture	Forming
BS-F 200
Effective Width (mm)		Depth (mm)	Thickness (mm)
1000		35	1.2T ~ 2.3T

Product name	Picture	Forming
BS-F 500
Effective Width (mm)		Depth (mm)	Thickness (mm)
500		200	1.2T ~ 2.3T

Product name	Picture	Forming
BS-F 180
Effective Width (mm)		Depth (mm)	Thickness (mm)
900		35	1.2T ~ 2.3T

Product name	Picture	Forming
BS-F PB
Effective Width (mm)		Depth (mm)	Thickness (mm)
			1.2T ~ 2.3T
