ITEM SPECIFICS
-
Brand
Unbranded
-
origin
Republic of Korea
-
Size(Capacity)
PRODUCT DESCRIPTION

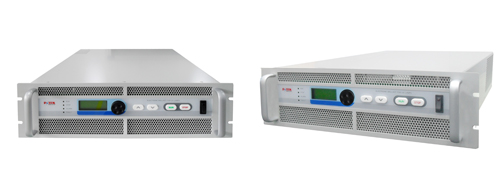

UV Lamp Power Supply Electronic Ballast [PSUV-05050PB-B]
It is electronic ballast for lighting UV lamps used in semiconductor equipments and industrial machines. Using for UV printing, hardening, sterilization, exposure, cleaning. The applied lamp is UV Long Arc and Short Arc Lamp. UV lamp using for products's surface cleaning and improvement etc.
Specification
1. Power : 5kW
2. Input : 3Ø 220VAC
3. Output Voltage : Max 500V
4. Output Current : Max 12A
5. Weight : 13kg
- Providing customized specification for customer
Feature
1. >93% Efficiency (at rated load)
2. >93% Power factor (ar rated load)
3. High Fuction, High Reliability
4. Compact size
5. Maximizing the UV lamp lifetime
6. Various Protection circuits
Technical Strength
1. Low frequency AC square wave
2. Full digital control (32bit DSP)
3. Multi Loop control
4. Real time digital monitoring
5. Simmer source (option)
6. Customized control circuits
The specification of product line up
|
Item
|
Product
|
Power (kW)
|
Input (V)
|
Output (V)
|
Output (A)
|
Weight (kg)
|
Dimension (W x H x D)
|
|
UV
Long Arc Lamp Power Supply |
PSUV-02030PA
|
2
|
1-Phase, 220VAC
|
Max. 300
|
Max. 12
|
7
|
140 x 132 x 394
|
|
PSUV-03040PA
|
3
|
1-Phase, 220VAC
|
Max. 400
|
Max. 10
|
7
|
140 x 132 x 394
|
|
|
PSUV-04060PD
|
4
|
3-Phase, 440VAC
|
Max. 600
|
Max. 12
|
6
|
TBD
|
|
|
PSUV-05050PB
|
5
|
3Ø 220VAC
|
Max. 500
|
Max. 12
|
13
|
342 x 132 x 416
|
|
|
PSUV-05050PC
|
5
|
3Ø 380VAC
|
Max. 500
|
Max. 10
|
13
|
342 x 132 x 416
|
|
|
PSUV-05065PB
|
5
|
3Ø 220VAC
|
Max. 650
|
Max. 10
|
13
|
342 x 132 x 416
|
|
|
PSUV-05060PC
|
5
|
3Ø 380VAC
|
Max. 600
|
Max. 10
|
13
|
342 x 132 x 416
|
|
|
PSUV-05060PD
|
5
|
3Ø 440VAC
|
Max. 600
|
Max. 10
|
13
|
342 x 132 x 416
|
|
|
PSUV-08100PD
|
8
|
3Ø 440VAC
|
Max. 1000
|
Max. 10
|
13
|
330 x 132.5 x 400
|
|
|
PSUV-12120PB
|
12
|
3Ø 220VAC
|
Max. 1200
|
Max. 12
|
37
|
480 x 132 x 649
|
|
|
PSUV-12120PC
|
12
|
3Ø 380VAC
|
Max. 1200
|
Max. 12
|
37
|
480 x 132 x 649
|
|
|
PSUV-15120PC
|
15
|
3Ø 380VAC
|
Max. 1200
|
Max. 15
|
37
|
480 x 132 x 649
|
|
|
PSUV-15120PD
|
15
|
3Ø 440VAC
|
Max. 1200
|
Max. 15
|
37
|
480 x 132 x 649
|
|
|
PSUV-20160PB
|
20
|
3Ø 220VAC
|
Max. 1600
|
Max. 15
|
37
|
480 x 132 x 649
|
|
|
PSUV-20160PC
|
20
|
3Ø 380VAC
|
Max. 1600
|
Max. 15
|
37
|
480 x 132 x 649
|
|
|
PSUV-20120PD
|
20
|
3Ø 440VAC
|
Max. 1200
|
Max. 20
|
37
|
480 x 132 x 649
|
|
|
PSUV-30240PB
|
30
|
3Ø 380VAC
|
Max. 2400
|
Max. 15
|
47
|
480 x 176 x 745
|
|
|
PSUV-50290PD
|
50
|
3Ø 440VAC
|
Max. 2900
|
Max. 20
|
90
|
TBD
|
|
|
UV
Short Arc Lamp Power Supply |
PSSA-0H060DA
|
0.250
|
1Ø 220VAC
|
Max. 60
|
Max. 6
|
5
|
154 x 132 x 350
|
|
PSSA-01050DA
|
1
|
1Ø 220VAC
|
Max. 50
|
Max. 25
|
7
|
140 x 132 x 394
|
|
|
PSSA-02050DB
|
2
|
3Ø 220VAC
|
Max. 50
|
Max. 70
|
28
|
480 x 132.5 x 784
|
|
|
PSSA-3H080DB
|
3.5
|
3Ø 220VAC
|
Max. 80
|
Max. 62
|
35
|
480 x 132 x 649
|
|
|
PSSA-05060DB
|
5
|
3Ø 220VAC
|
Max. 60
|
Max. 120
|
37
|
480 x 132.5 x 784
|
|
|
PSSA-05100DB
|
5
|
3Ø 220VAC
|
Max. 100
|
Max. 80
|
37
|
480 x 132.5 x 784
|
|
|
PSSA-08100DB
|
8
|
3Ø 220VAC
|
Max. 100
|
Max. 120
|
39
|
480 x 132.5 x 784
|
|
|
Xenon
Flash Lamp Power Supply |
PSMP-03045PC
|
2
|
3Ø 380VAC
|
Max. 450
|
Max. 1000
|
|
480 x 176 x 745
|
|
PSMP-06240PC
|
6
|
3Ø 380VAC
|
Max. 2400
|
Max. 2000
|
|
TBD
|
|
|
PSMP-30XXXPC
|
30
|
3Ø 380VAC
|
Max. 3000
|
Max. 12
|
|
TBD
|
|
|
PSMP-40XXXPC
|
40
|
3Ø 380VAC
|
Max. 4000
|
Max. 12
|
|
TBD
|
|
|
PSMP-50XXXPC
|
50
|
3Ø 380VAC
|
Max. 5000
|
Max. 12
|
|
TBD
|
|
|
PSMP-60XXXPC
|
60
|
3Ø 380VAC
|
Max. 6000
|
Max. 10
|
|
TBD
|
