ITEM SPECIFICS

  • Brand
    Unbranded
  • origin
    Republic of Korea
  • Size(Capacity)

CISU

Business Information
GPS L1 band CISU(Commercial Interference Suppression Unit) is an anti-jamming device installed between the receiving antenna of the widely-used GPS L1 C/A code receiver system and the receiver simply reinforcing the anti-jamming function of the existing GPS receiver system. The ISU provides optimum anti-jamming performance eliminating the interference signal within the GPS band simultaneously eliminating several narrow bands interference signals and delivering to the receiver with minimum GPS signal loss. The ISU has a high reliability based on verified anti-jamming technology which went through testing evaluations & applications in various conditions.

Manufactured Products

Size : 96 x 143 x 50mm
Weight : 500g
Frequency : GPS L1(1575.42 MHz)
Bandwidth : 2 MHz
30dB Additional Anti-jamming Capability
CW, AM, FM, Sweep CW, Pulse
Power Connector / Switch / LED
VSWR : < 2.0
Noise Figure : < 3 dB
Gain : 20 dB
IP1dB : -36 dBm
Power : 15~24V / 5W
Interface : RS232
Monitoring Interference & Cancellation State

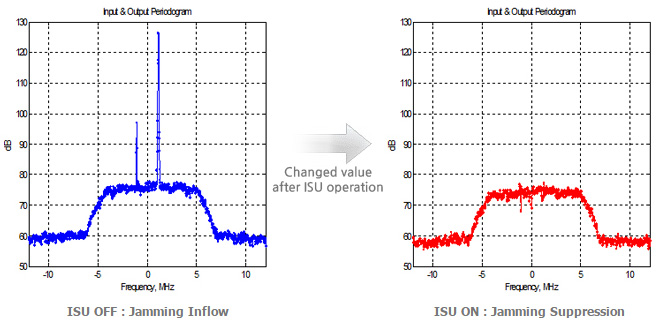

ISU Test Results

GPS C/A code receiver interference effect(Gaeseong District Jammer)

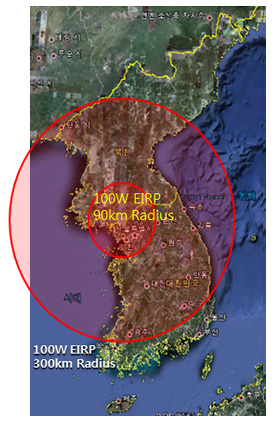

GPS non-receiving distance per interference size(radius)

Interference Size
1W
10W
100W
300W
Common Receiver
30km
90km
300km
500km
ISU On
N/d
<2km
<10km
<15km
Effect
Approx. 95% Reduction
