MKP-054 battery operated dot peen marking machine

Payment

T/T
MOQ

1 Set
Supply Ability

50 Set per Weekly
Supply Details

Customization
Country of sale

Asia, Americas, Europe, World Wide

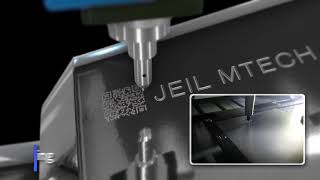

Catalogue Video Clip
PRICE
- FOB

  USD 5,500.00
  (1 Set)

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Marksman

Model MKP-054
origin

Republic of Korea
Size(Capacity)

152(W) X 130(W) X 330(H)
Function

Battery operated dot peen marking machine
Weight

3.2kg / Including jig 3.7kg
Dimensions

Marking area : 70 x 35mm
Material

Steel

PRODUCT DESCRIPTION

MKP-054 Battery operated Portable (Hand-Held) marking machine

The MKP-054 is battery operated portable marking capability with Blue tooth connectivity.

MKP-054 marking machine is ideal for large fabrications and bulky, heavy and stationary parts on pallets. It supports linear, angler and cylindrical surfaces and 2D Data Matrix marking.

You can even edit your information and send it wirelessly to the marking head in seconds via Bluetooth and verify your variable data and setting on the built-in LCD.

Any material can be marked from plastic and hardened steel upto HRC 62.

No electric and pneumatic cable need the marking process.

Possible to do 40mins continuous marking without recharging by 2.0Ah battery standard.

Specification

Model	MKP-054
Dimension	152 mm (W) X 130 mm (L) X 330 or 140 mm (H)
Marking area	70 mm (X) X 35 mm (Y)
Weight(Including battery & jig)	3.2kg (3.9kg)
Jig size	145 mm (W) X 115 mm (L) X 320
Available cha. height	- 30.0mm
Font	Standard 1 & 2, DOT font(Size 5x7), Available any window font with JS-2100 S/W
Marking Pin	Electromagnetic marking pin
Stroke of marking pin.	Upto Max. 5mm (Constant marking depth)
Available Cha.	Figure, Capital letters, Lower case. Special cha.

User Interface

Using JS-2100 PC software, It is possible to create marking files directly on the PC and transfer them to the marking machine through Bluetooth connectivity.

It is possible to visualize the created marking file by preview function on JS-2100 S/W through Bluetooth connectivity before the actual marking process.

Also you can create simple logo file on it directly without Auto cad program.

Possible to import excel file on it.

Specification of the Battery and the Recharger

Charger	AL-1860CV
Charge current A	6
Charging time min	45 min
Input Voltages(V)	230V
Model	Li-ion quick charger
Charge monitoring	Constant-Current, Constant-voltage charging control
Weight	0.765kg

Battery	Bosch Li-Ion Battery
Battery Voltage	18V	18V	18V
Battery Capacity	2.0Ah	4.0Ah	5.0Ah
Weight	0.35kg	0.5kg	0.6kg
Size	113 x 75 x40mm	115 x 74 x 56mm
Recharging time	App 45 min.	App. 50min	App. 60min
