HDMI 2.0 optical fiber detachable extender (HDFX-500)

  • Payment
    OT , T/T , WK
  • MOQ
    100 Set
  • Supply Ability
    100,000 Set per One-Time
  • Supply Details
    Customization Sample Order

    Depends on quantity. / If you want to buy in bulk, please contact me

  • Country of sale
    Asia, Americas, Europe, Middle East, World Wide
  • PRICE
    • FOB

      Depend on quantity

ITEM SPECIFICS

  • Brand
    Opticis
    Model HDFX-500
  • origin
    Republic of Korea
  • Size(Capacity)
    22mm x 67mm x 14mm
  • Color
    Black
  • Function
    Stretch HDMI™ : Small Module
  • Features
    Transmits HDMI 2.0 data up to 200m (656feet) over one LC multi-mode fiber (OM3)
  • Condition
    Brand new


PRODUCT DESCRIPTION

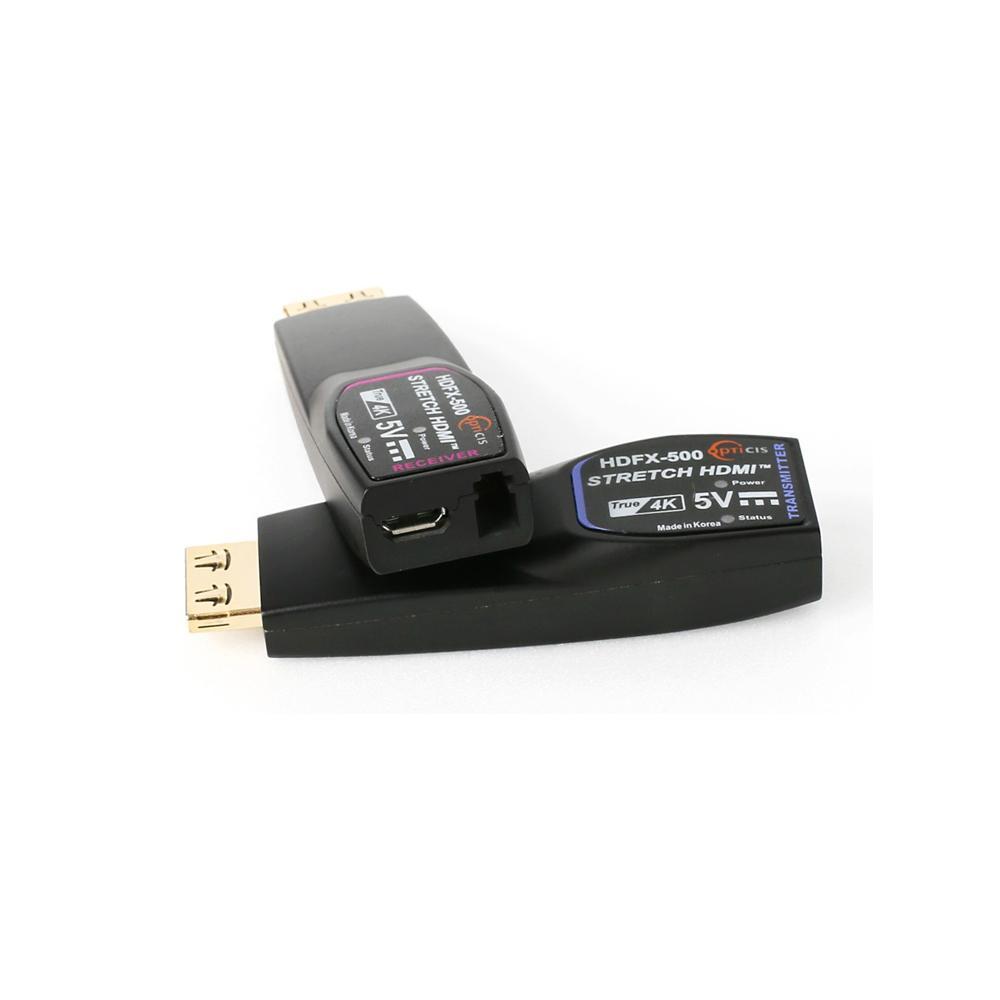

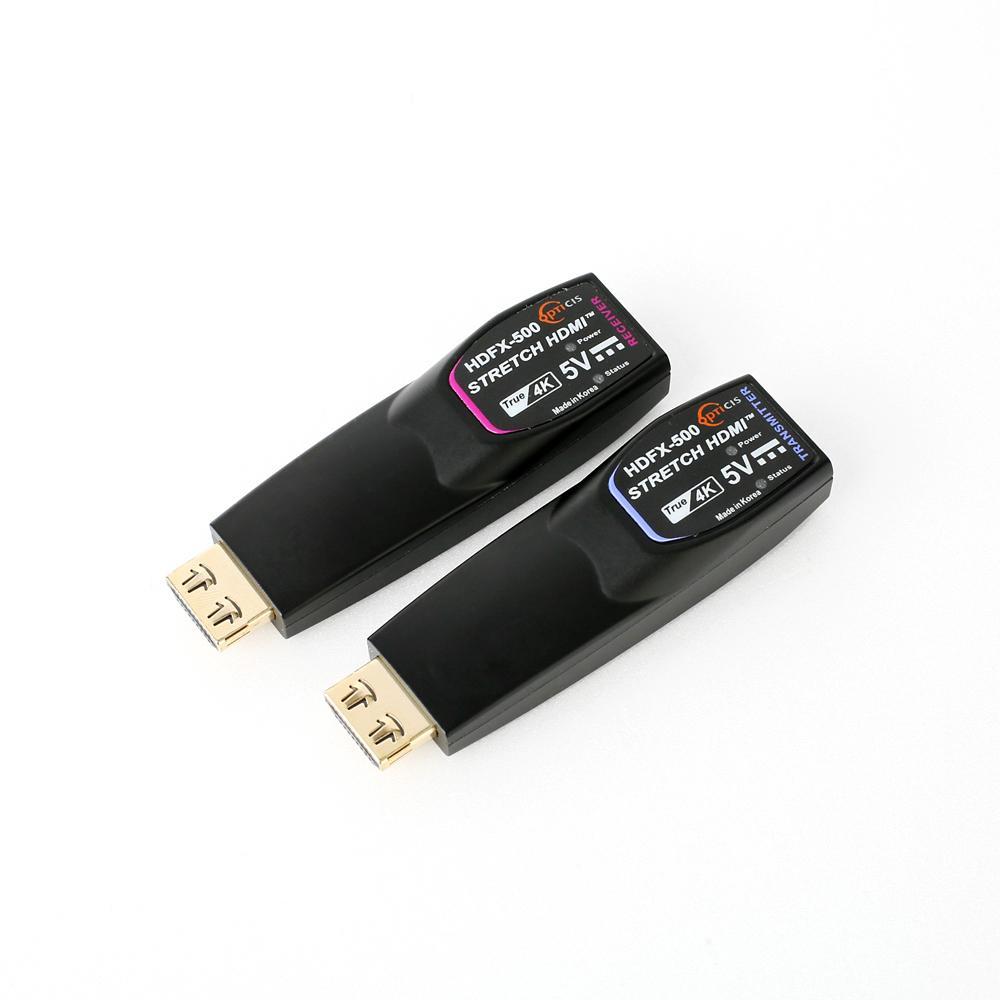

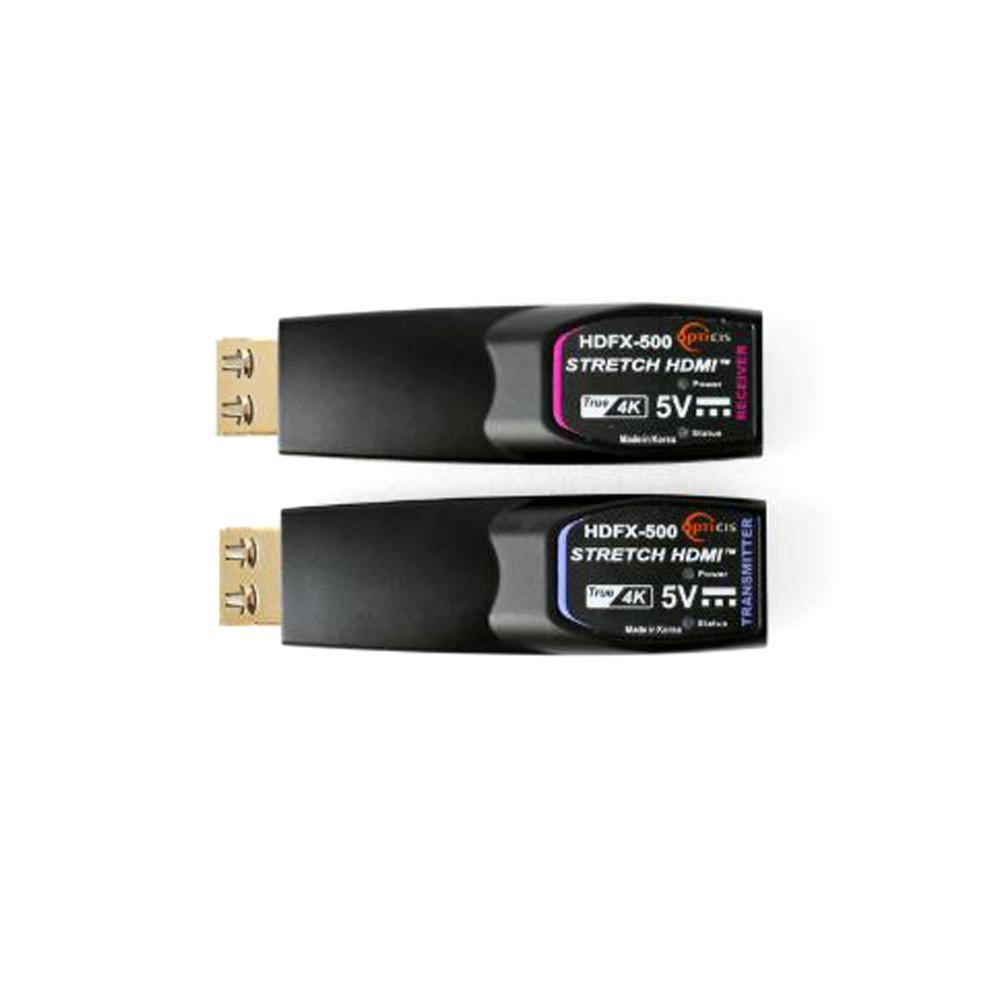

HDMI 2.0 optical fiber detachable extender (HDFX-500)
[Product Description]
HDMI 2.0 optical fiber detachable extender, HDFX-500-TR, extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one LC multi-mode fiber. Leading-edge technology of Opticis allows long distance transmission of 4K signal without any video/audio degradation.
HDFX-500-TR is designed compact enough to be fitted into various installation environments. It gives slim, light, easy installation with perfect electrical isolation, but without electrical hazard and interference.
HDFX-500-TR adopted High-Retention HDMI connector, which allows for more retention force than standard HDMI connector, prevents accidental disconnection.
HDFX-500-TR is compliant with HDMI standards features like CEC, EDID and HDCP 2.2 for better installation flexibility and compatibility. It also supports HDR to deliver more realistic, and objective video signal.
HDFX-500-TR can be operated by either USB power or DDC 5V power from HDMI source (Tx only). Auto Power-Switching feature makes it more reliable on its power supply.
[Product Specifications]
• Supports HDMI 2.0 standards feature
• Extension limit: 200m (656feet) for 4K UHD (4096x2160) at 60 Hz (RGB & YCbCr : 4:4:4) refresh rate over one (1) LC OM3 fibers (50/125um).
• Graphic Transmission Bandwidth: Supports total data rate 18Gbps (6Gbps per Channel).
• Complies CEC, EDID & HDCP 2.2
• Prevents accidental disconnection by using High-Retention HDMI connector
• Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps
• Mechanical specifications of transmitter and receiver
[Environmental Specifications]
• Dimensions(WDH): 22mm x 67mm x 14mm
• Operating temperature: 0°C to 50°C
• Storage temperature: -30°C to 70°C
• Humidity: 10% to 85%
[System Requirements for Setup]
Hardware requirements
• You have to have a HDMI source and display. It should support the maximum graphic resolution feature of displays to be connected.
• No special requirements of memory size, CPU speed and chipsets, if you've already properly installed your HDMI systems or graphic cards.
• Proper initial trial of the entire platform with its application using a short length copper cable is recommended prior to installation with the optical link.
Software requirements
• No special restrictions, if you've already properly installed your HDMI systems.
Power Technical Advisory
• Enclosed Power Adaptors and USB cables supply power to both Transmitter and Receiver.
Connection Advisory
• It is highly recommend that HDMI source is directly connected into HDMI display output via HDFX-500-TR without connection to incompatible distributor, switcher and selector.
[Maintenance]
• No special maintenance is required for the optical system cables and power supplies. Ensure that the cables and power modules are stored or used in a benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to Opticis or its authorized distributor.
[Technical Support and Service]
• For commercial or general product support, contact your reseller. For technical service, contact Opticis by email techsupp@opticis.com or visit its website at www.opticis.com
[Warranty Information]
• 1 (One) Year Warranty
Opticis warrants this optical HDMI module to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized resellers.
