Vehicle Side Slip Tester (KEA-3000/10000/15000)
Description
Koeng's roller brake tester KEA is a modern equipment for inspection of the amount of camber and toe when 4 wheels are drivinv simultaneously.
The vehicles that can be inspected can weigh up to 15 Tons, (Optional for 3T, 10T, 15T)

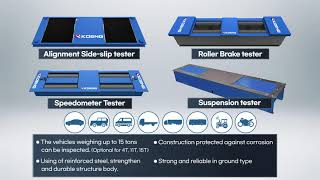

It can work as a part of the intergrated Koeng ABS lane such KEA(Side slip tester), KEB(Roller brake tester), KES(Speedometer tester). The testing results can be displayed with 2 types of control system.
ABS Combi Con. is the economical control unit with LED indicator and ABS Smart-Con. is the PC based control unit.
Applicable
Wide range of outstandingly robust and easy to operate Side slip tester for every vehicle type including cars, commercial vehicles, trucks, buses, tractors, trailers as well as 4 wheel drve vehicle and weight class.
Features
Using of reinforced steel, strengthen and durable structure body (Strong channel)
Construction protected against corrosion
Strong and reliable in ground type
Display indicator (PC or LED Indicator)
Specification |
Model |
KEB-3000 |
KEB-10000 |
KEB-15000 |
Maximum axle weight |
3,000kgf |
10,000kgf |
15,000kgf |
Plate size(L x W) |
750 x 500mm |
750 x 500mm |
750 x 1,000mm |
Measurable range |
IN/OUT 0.0~15.0m/km |
Measuring type |
Potentiometer |
Indication |
F.N.D alarm & Lamp |
Dimension(L x D x W) |
2,540x610x150mm |
2,990x610x150mm |
2,990x610x150mm |
Power supply |
AC 110V/220V, 1ph, 50Hz/60Hz |
|
|
