Self adhensive waterproofing sheet

Payment

L/C(sight)
MOQ

1 Set
Supply Ability

1,000,000 Set per One-Time
Supply Details

Customization

Negotiable
Country of sale

World Wide, Asia, Middle East, Europe, Americas

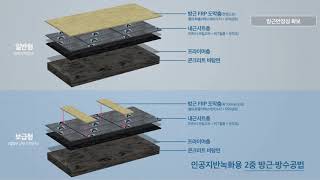

Catalogue Video Clip
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

SMART POWER SHEET

Model SMART POWER SHEET
origin

Republic of Korea
Size(Capacity)

10,000*1,000mm
Style

sheet
Function

waterproofing
Condition

roll
Gender

all
age-appropriate

all

PRODUCT DESCRIPTION

Self adhensive waterproofing sheet

Specification

Product Name	SMART POWER SHEET
Brand Name	SAMSUNG Construction Ltd.
Width	1,000mm
Height	10,000mm
Origin	Republic of Korea

Key Features

1. Improving product quality and workability.
2. Improving long-term waterproof stability with 3-x-layered film.
3. Solving the problem of de-oiling, which is a problem with existing waterproof sheets.

Smart Power System

Viscous and Flexible Butyle Composite Sheet Waterproofing MethodSmart Power System

Viscous and Flexible Butyle Composite Shee Waterproofing Method that integrates the butyl rubber preventing deoiling and an oil film with the PET laminated and 3-x-layered crossing film minimizing differences in performance according to directions of length and width

Features of SMART POWER Sheet Method

Adhesive Waterproofing Technology
It is a construction method to immerse it into pores of the surface of concrete by using the pressing tool such as a roller etc. after removing a release film on the back of the viscous and flexible butyl composite sheet and an adhesive waterproofing method reducing the working hours according to the sheet attachment, bringing the effect of reducing construction period and costs, and not requiring the period for curing

Joint-Integrated Technology
A joint-integrated technology reducing the working hours and improving adhesiveness between sheets and safety against leaking by integrating the sheet with the adhesion surface mutually thanks to the rubber’s own self-adhesive characteristic

Low-Temperature Quality Stability
While the existing sheet waterproofing method has lost its adhesiveness when the low temperature environment (5℃) set in so it has been difficult to attach on the surface of concrete, this is a waterproofing technology that safety for attachment at low temperature is secured, which maintains its adhesiveness at low temperature thanks to excellent cold resistance of the rubber sheet as the rubber sheet has excellent flexibility at low temperature so the flexibility at low temperature is secured by preventing fracture even at the temperature as low as –30℃.

Performance of Chloride Damage Resistance
It is a product that is certified as a proper method for underground structures under the environment with chloride damages in the assessment on waterproofing materials and that can maintain longterm waterproofing performance and durability performance.
• A report on assessment and research on waterproofing materials and characteristics of method under the environment with chloride damage (Korea Concrete Institute)
• A report on assessment on characteristics of waterproofing materials for the 3-step work at Incheon International Airport

Structure Behavior Response
It maintains the prevention of fracture of the waterproofing x-layer and its functions at the vulnerable part such as expansion joints, cracks and construction joints etc. by the soft highly-adhesive butyl rubber x-layer responding to the effect (displacement) of a structure behavior and cracks of the surface, playing a role as a buffer.
• A report on assessment on characteristics of waterproofing materials for the 3-step work at Incheon International Airport

※ See catalog for more details

Company Overview

Samsungcon Corp. has been doing its best in providing the best technical service for waterproofing, corrosion-resisting and root-proofing and developing new technologies with the best quality, pursuing technical superiority and technical innovation since its establishment in 1992.
Based on Samsungcon Corp.’s own technical skills that were given a certification of #466, #536 and #710 as new technologies for construction by Ministry of Land, Infrastructure and Transport, it has expanded its market to overseas beyond the domestic market.
It has focused its creative core competencies on research and development in order to create new technologies and construction methods, and it will grow up to be a company taking a lead with technologies in the global market of the future as well.

For customer satisfaction, we have been aiming at technology superiority and tech nology innovation, providing the best waterproofing and anti-corrosion technology service, and pursuing new technologies with the motto of “Quality First”.

With a lot of work experiences and accumulated technologies, we are possessing a variety of systems, processes and materials. In order to create new technological products and systems, we are having our core competence focused on research and development, and would like to be a competent company which will tatke the lead in technology in the global market as well.
